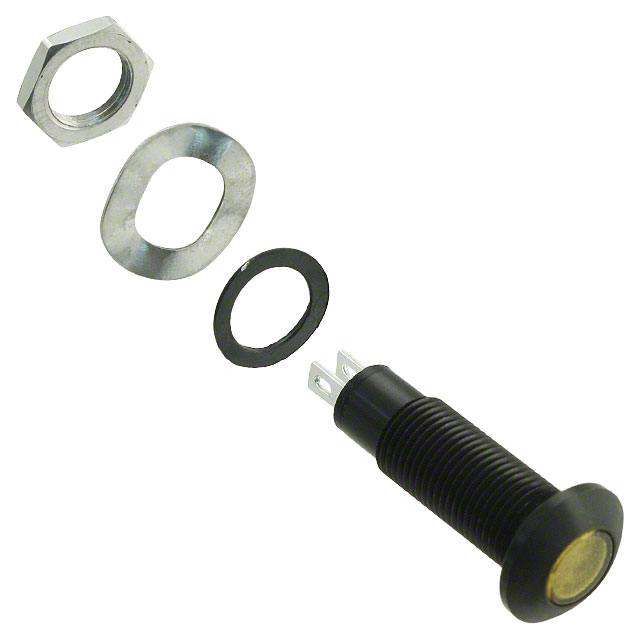

PM5-A7Y110AC
PANEL MOUNT ASSEM 8.1MM YELLOWManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
The Bivar Inc. PM5-A7Y110AC is a panel mount LED indicator from the PM5 series, designed for robust visual signaling. This component features a yellow Fresnel lens with a 120° viewing angle, providing excellent light diffusion and visibility. The unit operates at 110V AC with a typical current draw of 20mA and a peak wavelength of 585nm, delivering a millicandela rating of 600mcd. Termination is facilitated by a convenient 0.110" (2.8mm) quick connect. Engineered for demanding environments, it boasts an IP67 ingress protection rating, making it suitable for industrial control panels, automation equipment, and heavy machinery applications where reliable status indication is critical. The panel cutout is a standard 0.32" (8.13mm) round.
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 110V |
| Type | LED |
| Millicandela Rating | 600mcd |
| Termination Style | Quick Connect - 0.110"" (2.8mm) |
| Lens Color | Yellow |
| Viewing Angle | 120° |
| Ingress Protection | IP67 |
| Ratings | AC |
| Panel Cutout Dimensions | 0.32"" (8.13mm) |
| Wavelength - Peak | 585nm |
| Lens Transparency | Fresnel |
| Lamp Color | Yellow |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 7.00mm Dia |
