PM5-A7R110AC
PANEL MOUNT ASSEM 8.1MM REDManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

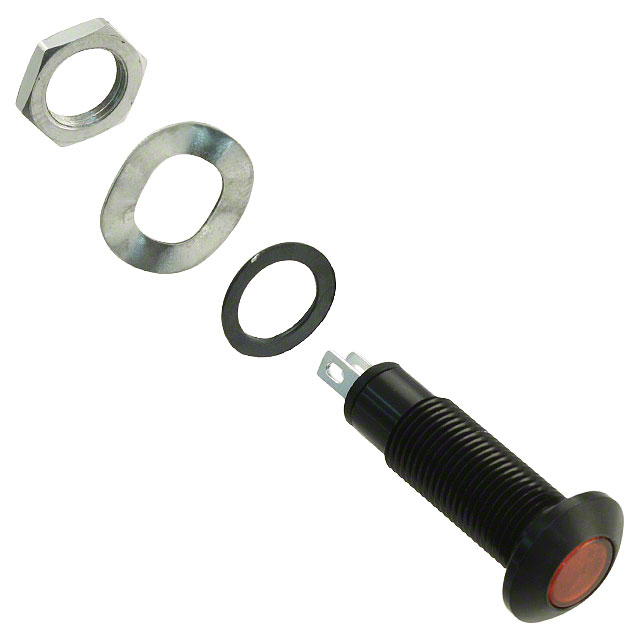

Bivar Inc. PM5 Series LED panel indicator, part number PM5-A7R110AC. This panel mount assembly features a red Fresnel lens with a 120° viewing angle and a 600mcd millicandela rating at a peak wavelength of 630nm. Designed for 110V AC operation with a 20mA current draw, it utilizes a quick connect termination style with 0.110" (2.8mm) connectors. The unit has a panel cutout of 0.32" (8.13mm) and offers IP67 ingress protection. This component is suitable for applications in industrial control, instrumentation, and building automation.
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 110V |
| Type | LED |
| Millicandela Rating | 600mcd |
| Termination Style | Quick Connect - 0.110"" (2.8mm) |
| Lens Color | Red |
| Viewing Angle | 120° |
| Ingress Protection | IP67 |
| Ratings | AC |
| Panel Cutout Dimensions | 0.32"" (8.13mm) |
| Wavelength - Peak | 630nm |
| Lens Transparency | Fresnel |
| Lamp Color | Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 7.00mm Dia |
