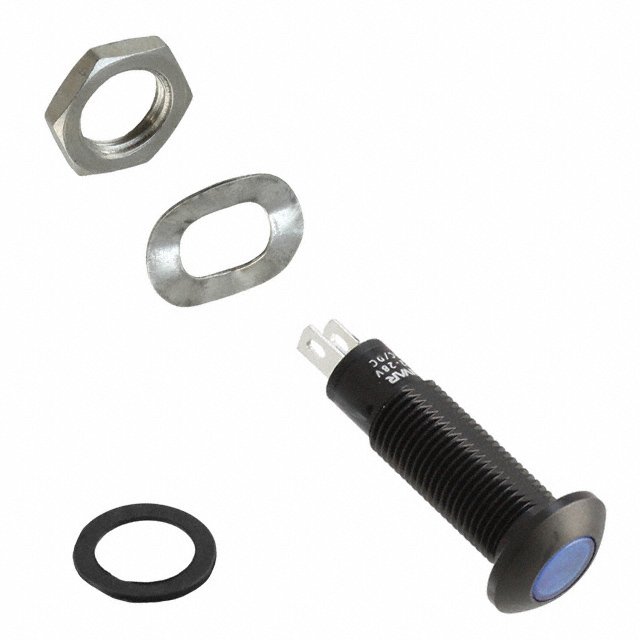

PM5-A7B28V
PANEL MOUNT ASSEM 8.1MM BLUEManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
Bivar Inc. PM5 Series LED Panel Indicator, Part Number PM5-A7B28V. This panel mount assembly features an 8.1mm cutout and a blue Fresnel lens with a 120° viewing angle. Operating across a wide voltage range of 12V to 28V AC/DC, it draws a nominal current of 20mA and offers a typical millicandela rating of 400mcd. The termination is via a 0.110" (2.8mm) quick connect. With an IP67 ingress protection rating and a lens diameter of 7.00mm, this component is suitable for demanding applications in industrial automation, control panels, and instrumentation where reliable visual indication is critical. The blue lens and 465nm peak wavelength ensure clear and distinct signaling.
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 12V ~ 28V |
| Type | LED |
| Millicandela Rating | 400mcd |
| Termination Style | Quick Connect - 0.110"" (2.8mm) |
| Lens Color | Blue |
| Viewing Angle | 120° |
| Ingress Protection | IP67 |
| Ratings | AC/DC |
| Panel Cutout Dimensions | 0.32"" (8.13mm) |
| Wavelength - Peak | 465nm |
| Lens Transparency | Fresnel |
| Lamp Color | Blue |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 7.00mm Dia |
