PM5-A5Y28V
PANEL MOUNT ASSEM 6.35MM YELLOWManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

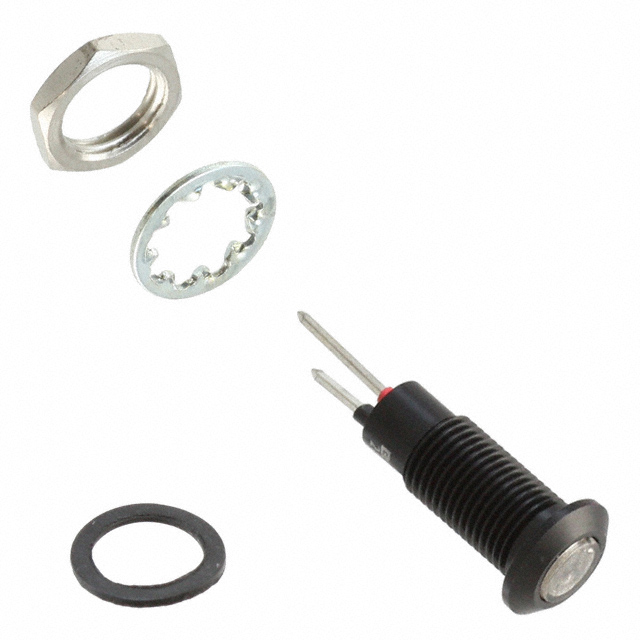

Bivar Inc. PM5 Series LED Panel Indicator, part number PM5-A5Y28V. This yellow LED panel mount assembly features a 6.35mm (0.25") round panel cutout and a Fresnel lens for enhanced visibility. Designed for applications requiring a 120° viewing angle, this component operates with a forward voltage of 24V to 28V and a current draw of 20mA. The yellow LED emitter provides a peak wavelength of 585nm and a typical millicandela rating of 87mcd. Termination is via PC pins, and the assembly offers IP67 ingress protection. This component is suitable for industrial control panels, automation systems, and general equipment status indication.
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 24V ~ 28V |
| Type | LED |
| Millicandela Rating | 87mcd |
| Termination Style | PC Pin |
| Lens Color | Yellow |
| Viewing Angle | 120° |
| Ingress Protection | IP67 |
| Ratings | DC |
| Panel Cutout Dimensions | 0.25"" (6.35mm) |
| Wavelength - Peak | 585nm |
| Lens Transparency | Fresnel |
| Lamp Color | Yellow |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 5.10mm Dia |
