PM5-A5Y12V
PANEL MOUNT ASSEM 6.35MM YELLOWManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

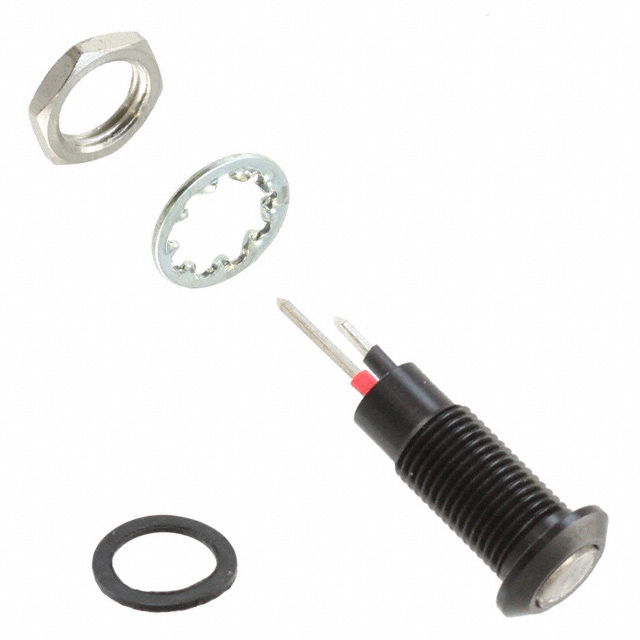

Bivar Inc. PM5 Series LED Panel Indicator, Part Number PM5-A5Y12V. This panel mount assembly features a 6.35mm (0.25") round cutout requirement and a 5.10mm diameter Fresnel lens for diffused illumination. The unit is rated for 12V DC operation at 20mA, producing a peak wavelength of 585nm with a typical millicandela rating of 87mcd and a wide 120° viewing angle. Designed for robust applications, it offers IP67 ingress protection. Termination is via PC pins. Commonly utilized in industrial control, automation, and commercial equipment where reliable visual status indication is critical.
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 12V |
| Type | LED |
| Millicandela Rating | 87mcd |
| Termination Style | PC Pin |
| Lens Color | Yellow |
| Viewing Angle | 120° |
| Ingress Protection | IP67 |
| Ratings | DC |
| Panel Cutout Dimensions | 0.25"" (6.35mm) |
| Wavelength - Peak | 585nm |
| Lens Transparency | Fresnel |
| Lamp Color | Yellow |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 5.10mm Dia |
