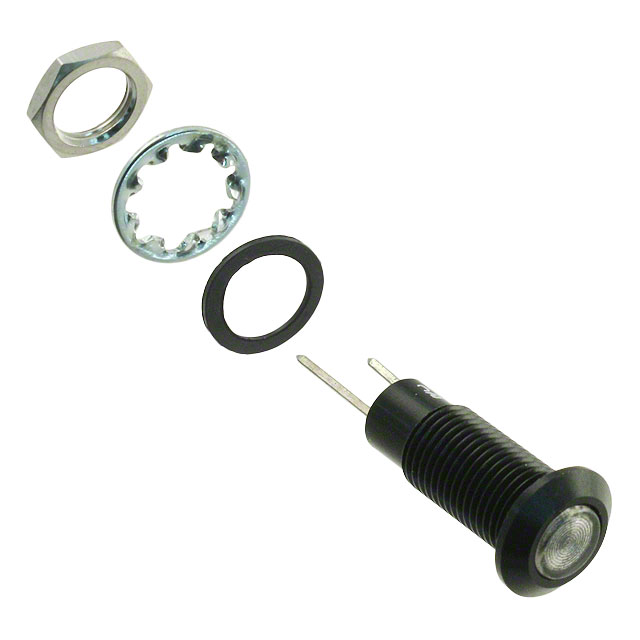

PM5-A5W12V
PANEL MOUNT ASSEM 6.35MM WHITEManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
Bivar Inc. PM5 Series LED Panel Indicator, part number PM5-A5W12V, features a white Fresnel lens with a 120° viewing angle. This panel mount assembly utilizes a 6.35mm (0.25") round cutout and is rated for 12V DC operation at 20mA. The component offers a millicandela rating of 414mcd and is equipped with PC pin terminations for secure mounting. Designed for demanding applications, this indicator boasts IP67 ingress protection, ensuring robust performance in industrial and harsh environmental settings. Its application scope extends across industrial automation, control panels, and equipment status indication where reliable visual feedback is critical.
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 12V |
| Type | LED |
| Millicandela Rating | 414mcd |
| Termination Style | PC Pin |
| Lens Color | White |
| Viewing Angle | 120° |
| Ingress Protection | IP67 |
| Ratings | DC |
| Panel Cutout Dimensions | 0.25"" (6.35mm) |
| Wavelength - Peak | - |
| Lens Transparency | Fresnel |
| Lamp Color | White |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 5.10mm Dia |
