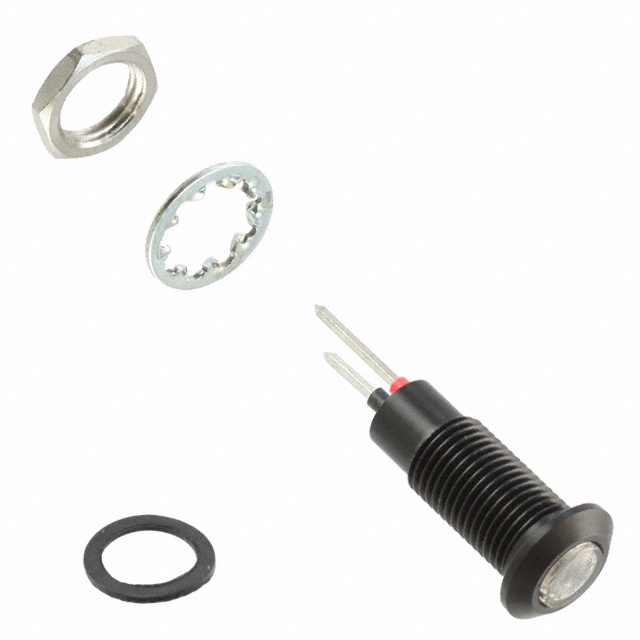

PM5-A5R28V
PANEL MOUNT ASSEM 6.35MM REDManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
Bivar Inc. PM5 Series LED Panel Indicator, Part Number PM5-A5R28V. This panel mount assembly features a red Fresnel lens with a 120° viewing angle and a 5.10mm diameter. Designed for a 0.25" (6.35mm) round panel cutout, it operates with a 20mA current draw across a 24V to 28V DC voltage range. The component utilizes a red LED with a peak wavelength of 660nm and a typical millicandela rating of 39mcd. Termination is via PC pin, and the assembly offers IP67 ingress protection. This component is suitable for applications in industrial automation, control panels, and medical equipment where robust and visible status indication is required.
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 24V ~ 28V |
| Type | LED |
| Millicandela Rating | 39mcd |
| Termination Style | PC Pin |
| Lens Color | Red |
| Viewing Angle | 120° |
| Ingress Protection | IP67 |
| Ratings | DC |
| Panel Cutout Dimensions | 0.25"" (6.35mm) |
| Wavelength - Peak | 660nm |
| Lens Transparency | Fresnel |
| Lamp Color | Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 5.10mm Dia |
