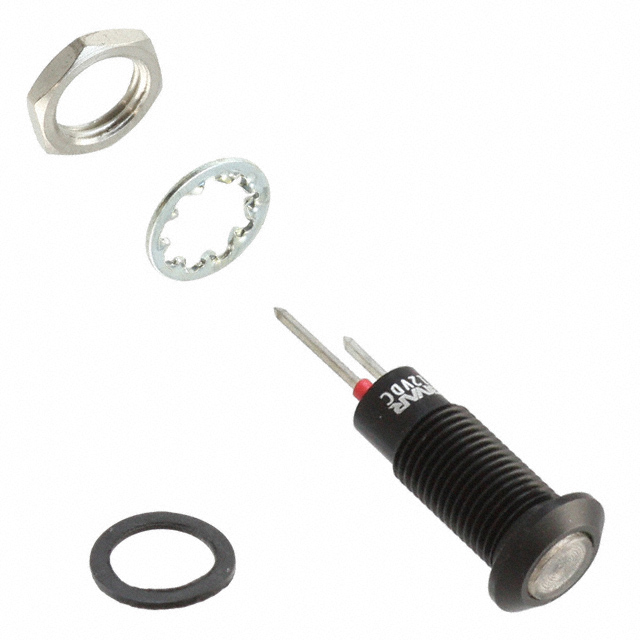

PM5-A5R12V
PANEL MOUNT ASSEM 6.35MM REDManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
Bivar Inc. PM5 series LED panel indicator, part number PM5-A5R12V. This panel mount assembly features a 6.35mm (0.25") round cutout with a Fresnel lens for enhanced visibility, offering a wide 120° viewing angle. The unit is illuminated by a red LED with a peak wavelength of 660nm, providing 39mcd luminous intensity at its rated 12V and 20mA. Designed for robust environmental resistance, it boasts an IP67 ingress protection rating. The termination style is PC pin, suitable for direct PCB mounting. This component is commonly utilized in industrial automation, control panels, and test equipment where reliable visual status indication is critical.
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 12V |
| Type | LED |
| Millicandela Rating | 39mcd |
| Termination Style | PC Pin |
| Lens Color | Red |
| Viewing Angle | 120° |
| Ingress Protection | IP67 |
| Ratings | DC |
| Panel Cutout Dimensions | 0.25"" (6.35mm) |
| Wavelength - Peak | 660nm |
| Lens Transparency | Fresnel |
| Lamp Color | Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 5.10mm Dia |
