PM5-A5G28V
PANEL MOUNT ASSEM 6.35MM GREENManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

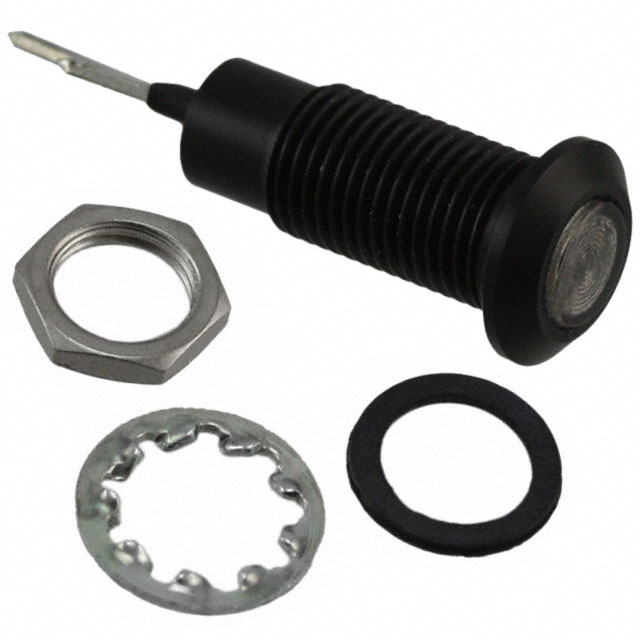

Bivar Inc. PM5 Series LED Panel Indicator, part number PM5-A5G28V. This panel mount assembly features a 6.35mm (0.25") round cutout requirement and a Fresnel lens for diffused illumination. The component utilizes a 5.10mm diameter green lens and emits green light with a peak wavelength of 525nm and a typical millicandela rating of 576mcd. It is designed for operation within a voltage range of 24V to 28V DC at a current of 20mA. The termination style is PC Pin, and the assembly offers an IP67 ingress protection rating. This indicator is suitable for applications in industrial control systems, automation, and equipment status indication.
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 24V ~ 28V |
| Type | LED |
| Millicandela Rating | 576mcd |
| Termination Style | PC Pin |
| Lens Color | Green |
| Viewing Angle | 120° |
| Ingress Protection | IP67 |
| Ratings | DC |
| Panel Cutout Dimensions | 0.25"" (6.35mm) |
| Wavelength - Peak | 525nm |
| Lens Transparency | Fresnel |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 5.10mm Dia |
