PM5-A5G12V
PANEL MOUNT ASSEM 6.35MM GREENManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

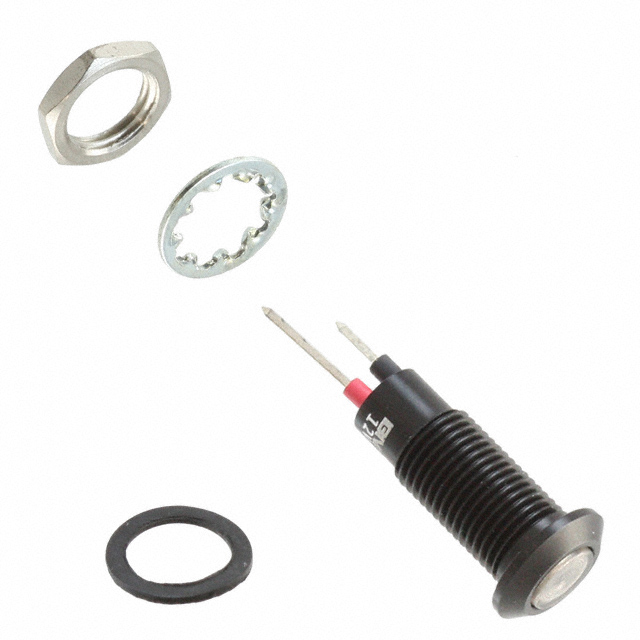

Bivar Inc. PM5 series LED panel mount indicator, part number PM5-A5G12V. This component features a green Fresnel lens for optimal light diffusion, providing a wide 120° viewing angle. Designed for panel mounting with a 6.35mm (0.25") cutout, it operates at 12V with a nominal current draw of 20mA. The unit boasts an IP67 ingress protection rating, ensuring robust performance in demanding environments. Key specifications include a peak wavelength of 525nm and a millicandela rating of 576mcd. The termination style is a PC pin for straightforward integration. This indicator is suitable for applications in industrial automation, control panels, and general equipment status indication.
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 12V |
| Type | LED |
| Millicandela Rating | 576mcd |
| Termination Style | PC Pin |
| Lens Color | Green |
| Viewing Angle | 120° |
| Ingress Protection | IP67 |
| Ratings | DC |
| Panel Cutout Dimensions | 0.25"" (6.35mm) |
| Wavelength - Peak | 525nm |
| Lens Transparency | Fresnel |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 5.10mm Dia |
