PM5-A5B28V
PANEL MOUNT ASSEM 6.35MM BLUEManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

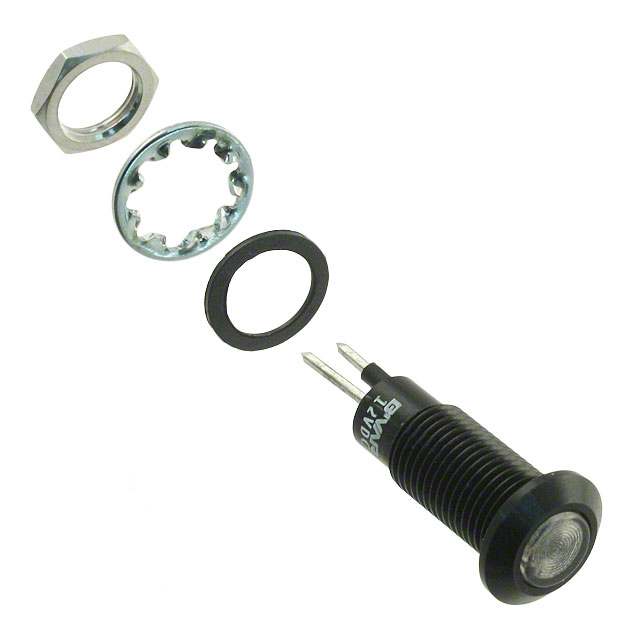

Bivar Inc. PM5 Series LED Panel Indicator, Part Number PM5-A5B28V, offers a robust solution for visual status indication. This panel mount assembly features a 6.35mm (0.25") round cutout requirement and a blue Fresnel lens with a 120° viewing angle, providing clear visibility. Designed for operation within a 24V to 28V DC range, the component draws a nominal 20mA and exhibits a typical millicandela rating of 128mcd at a peak wavelength of 470nm. The assembly utilizes PC pin terminations for reliable connection. With an IP67 ingress protection rating, it is suitable for demanding applications across industrial automation, control panels, and communication equipment where environmental resilience and precise visual feedback are critical.
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 24V ~ 28V |
| Type | LED |
| Millicandela Rating | 128mcd |
| Termination Style | PC Pin |
| Lens Color | Blue |
| Viewing Angle | 120° |
| Ingress Protection | IP67 |
| Ratings | DC |
| Panel Cutout Dimensions | 0.25"" (6.35mm) |
| Wavelength - Peak | 470nm |
| Lens Transparency | Fresnel |
| Lamp Color | Blue |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 5.10mm Dia |
