PM5-A20Y110V
PANEL MOUNT ASSEM 25.4MM YELLOWManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

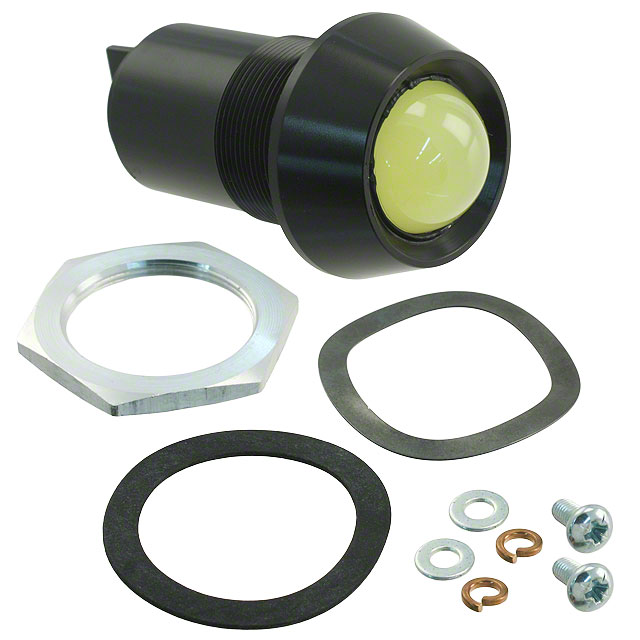

Bivar Inc. PM5 series LED Panel Indicator, part number PM5-A20Y110V, is a panel-mount assembly designed for 25.4mm (1 inch) cutout diameter. This diffused yellow LED features a 160° viewing angle and a peak wavelength of 590nm, delivering an 822mcd millicandela rating at 20mA. Rated for 110V AC/DC operation, it offers IP67 ingress protection, making it suitable for harsh environments. The component is utilized in industrial control panels, automation equipment, and power supply status indication.
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 110V |
| Type | LED |
| Millicandela Rating | 822mcd |
| Termination Style | - |
| Lens Color | Yellow |
| Viewing Angle | 160° |
| Ingress Protection | IP67 |
| Ratings | AC/DC |
| Panel Cutout Dimensions | 1"" (25.40mm) |
| Wavelength - Peak | 590nm |
| Lens Transparency | Diffused |
| Lamp Color | Yellow |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 20.00mm Dia |
