PM5-A20G110V
PANEL MOUNT ASSEM 25.4MM GREENManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

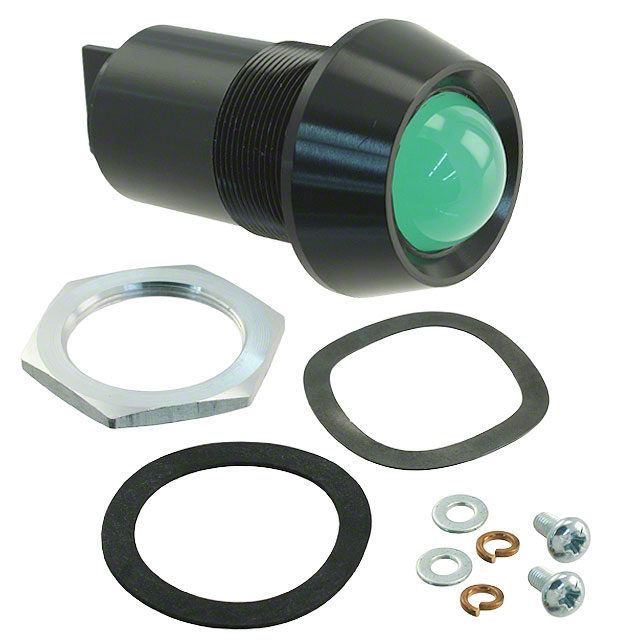

Bivar Inc. PM5 series LED panel indicator, part number PM5-A20G110V, offers a robust solution for panel illumination. This component features a green diffused lens with a 160° viewing angle, providing clear visual feedback. Rated for 110V AC/DC operation at a nominal 20mA, it delivers a typical millicandela rating of 110mcd at a peak wavelength of 565nm. The unit is designed for a 1-inch (25.40mm) round panel cutout, facilitating straightforward installation. With an IP67 ingress protection rating, it is suitable for environments requiring protection against dust and water. This panel mount assembly is commonly utilized in industrial control panels, automation systems, and test equipment where reliable visual status indication is critical.
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 110V |
| Type | LED |
| Millicandela Rating | 110mcd |
| Termination Style | - |
| Lens Color | Green |
| Viewing Angle | 160° |
| Ingress Protection | IP67 |
| Ratings | AC/DC |
| Panel Cutout Dimensions | 1"" (25.40mm) |
| Wavelength - Peak | 565nm |
| Lens Transparency | Diffused |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 20.00mm Dia |
