PM5-A20B24V
PANEL MOUNT ASSEM 25.4MM BLUEManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

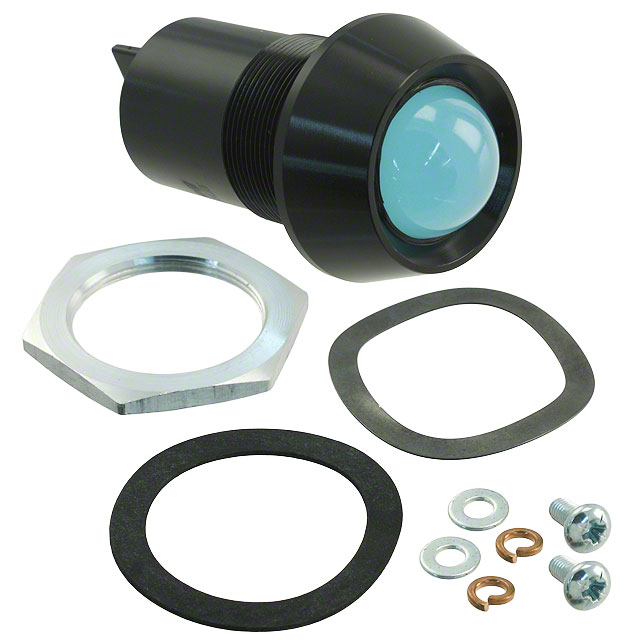

Bivar Inc. PM5 series panel mount LED indicator, part number PM5-A20B24V, provides a robust visual status indication solution. This component features a 24V DC operating voltage with a 20mA current draw, delivering 300mcd typical luminous intensity with a 470nm peak wavelength. The diffused blue lens offers a wide 160° viewing angle for broad visibility. Designed for panel mounting, it requires a 1" (25.40mm) round cutout. The assembly boasts IP67 ingress protection, making it suitable for harsh environments common in industrial automation, control systems, and heavy equipment applications.
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 24V |
| Type | LED |
| Millicandela Rating | 300mcd |
| Termination Style | - |
| Lens Color | Blue |
| Viewing Angle | 160° |
| Ingress Protection | IP67 |
| Ratings | DC |
| Panel Cutout Dimensions | 1"" (25.40mm) |
| Wavelength - Peak | 470nm |
| Lens Transparency | Diffused |
| Lamp Color | Blue |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 20.00mm Dia |
