PM5-A17Y110AC
PANEL MOUNT ASSEM 12.7MM YELLOWManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

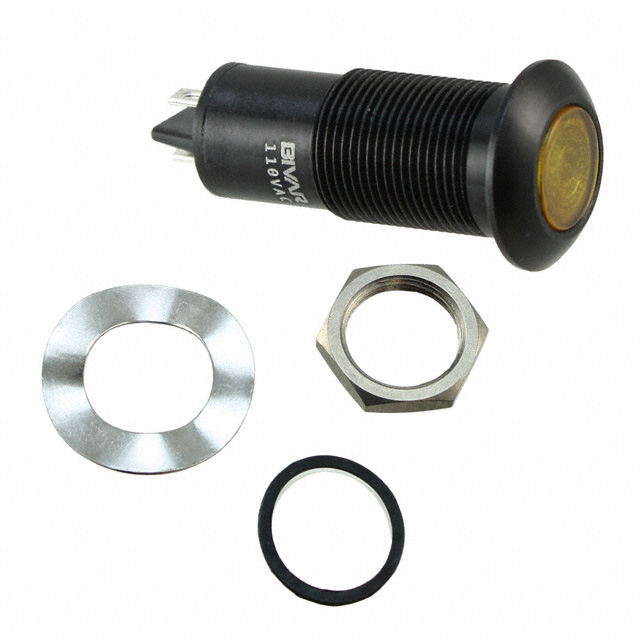

Bivar Inc. PM5 series LED Panel Indicator, part number PM5-A17Y110AC, offers a 12.7mm (0.50") panel cutout and a 110V AC rating. This component features a vibrant yellow Fresnel lens with a 120° viewing angle, providing a bright 600mcd luminous intensity at a 20mA current draw. The termination is a convenient 0.110" (2.8mm) quick connect. Designed for robust environmental resistance, it boasts an IP67 ingress protection rating. This panel indicator is well-suited for applications in industrial control, automation, and equipment status indication.
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 110V |
| Type | LED |
| Millicandela Rating | 600mcd |
| Termination Style | Quick Connect - 0.110"" (2.8mm) |
| Lens Color | Yellow |
| Viewing Angle | 120° |
| Ingress Protection | IP67 |
| Ratings | AC |
| Panel Cutout Dimensions | 0.50"" (12.70mm) |
| Wavelength - Peak | 585nm |
| Lens Transparency | Fresnel |
| Lamp Color | Yellow |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 10.20mm Dia |
