PM5-A17W110AC
PANEL MOUNT ASSEM 12.7MM WHITEManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

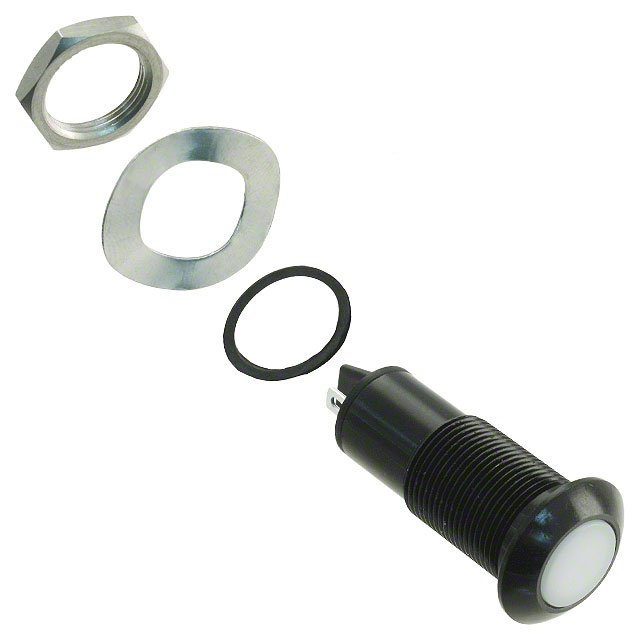

Bivar Inc. PM5 Series LED Panel Indicator, part number PM5-A17W110AC, offers a 12.7mm (0.50") round panel cutout with a white Fresnel lens for a 120° viewing angle. This unit operates at 110V AC and draws 20mA, providing a 1200mcd illumination. Terminations are facilitated via 0.110" (2.8mm) quick connect terminals. The IP67 rating ensures robust performance in harsh environments. This component is suitable for industrial control panels, instrumentation, and equipment status indication across various manufacturing and automation sectors.
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 110V |
| Type | LED |
| Millicandela Rating | 1200mcd |
| Termination Style | Quick Connect - 0.110"" (2.8mm) |
| Lens Color | White |
| Viewing Angle | 120° |
| Ingress Protection | IP67 |
| Ratings | AC |
| Panel Cutout Dimensions | 0.50"" (12.70mm) |
| Wavelength - Peak | - |
| Lens Transparency | Fresnel |
| Lamp Color | White |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 10.20mm Dia |
