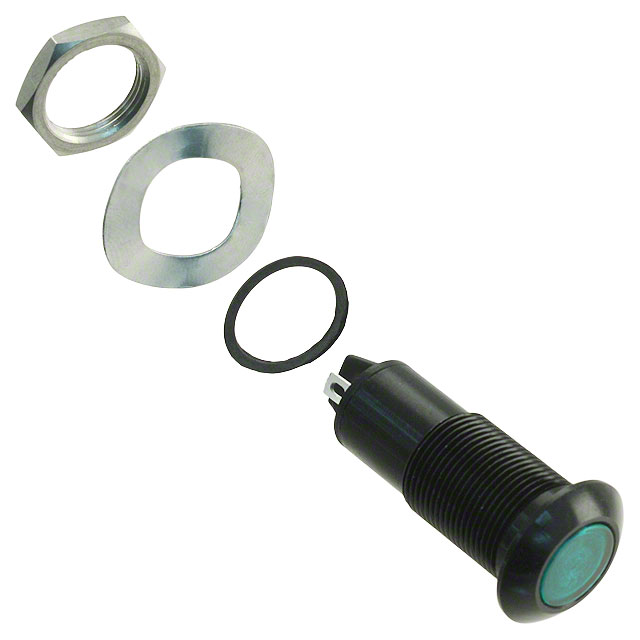

PM5-A17G110AC
PANEL MOUNT ASSEM 12.7MM GREENManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
Bivar Inc. PM5 Series LED Panel Indicator, part number PM5-A17G110AC, is a robust solution for front-panel illumination. This component features a 12.7mm (0.50") round panel cutout with a green Fresnel lens, providing a wide 120° viewing angle. It operates at 110V AC with a typical current draw of 20mA, achieving a millicandela rating of 800mcd at a peak wavelength of 515nm. The termination is a convenient 0.110" (2.8mm) quick connect. Designed for demanding environments, it boasts IP67 ingress protection. Applications for this indicator include industrial control panels, medical equipment, and general instrumentation where reliable visual feedback is critical.
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 110V |
| Type | LED |
| Millicandela Rating | 800mcd |
| Termination Style | Quick Connect - 0.110"" (2.8mm) |
| Lens Color | Green |
| Viewing Angle | 120° |
| Ingress Protection | IP67 |
| Ratings | AC |
| Panel Cutout Dimensions | 0.50"" (12.70mm) |
| Wavelength - Peak | 515nm |
| Lens Transparency | Fresnel |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 10.20mm Dia |
