PM5-A12W12V
PANEL MOUNT ASSEM 6.1MM WHITEManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

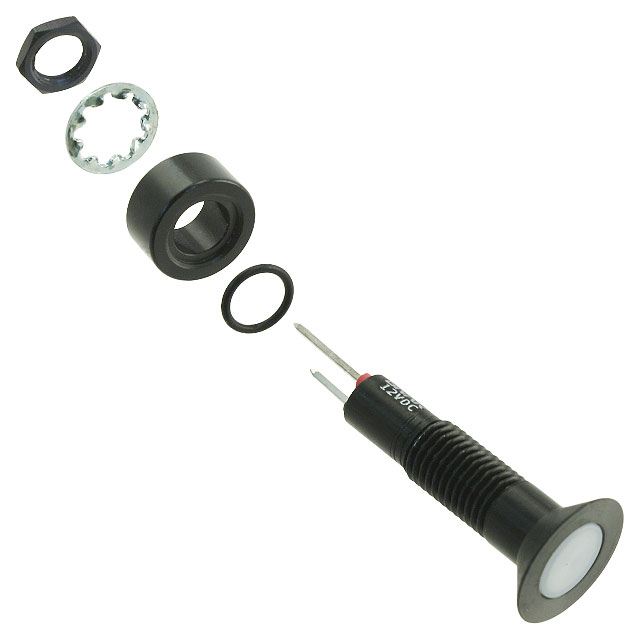

Bivar Inc. PM5 Series LED Panel Indicator, Part Number PM5-A12W12V, is a robust panel mount assembly featuring a 6.1mm (0.24") round cutout. This component utilizes a white Fresnel lens for diffused illumination, providing a wide 120° viewing angle. Rated for 12V DC operation and drawing a nominal 20mA, it offers a typical millicandela rating of 414mcd. The PC pin termination ensures straightforward integration into printed circuit boards. Designed for demanding environments, it boasts an IP67 ingress protection rating. This indicator is commonly employed in industrial control systems, instrumentation, and heavy equipment applications where reliable visual feedback is essential.
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 12V |
| Type | LED |
| Millicandela Rating | 414mcd |
| Termination Style | PC Pin |
| Lens Color | White |
| Viewing Angle | 120° |
| Ingress Protection | IP67 |
| Ratings | DC |
| Panel Cutout Dimensions | 0.24"" (6.10mm) |
| Wavelength - Peak | - |
| Lens Transparency | Fresnel |
| Lamp Color | White |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 6.70mm Dia |
