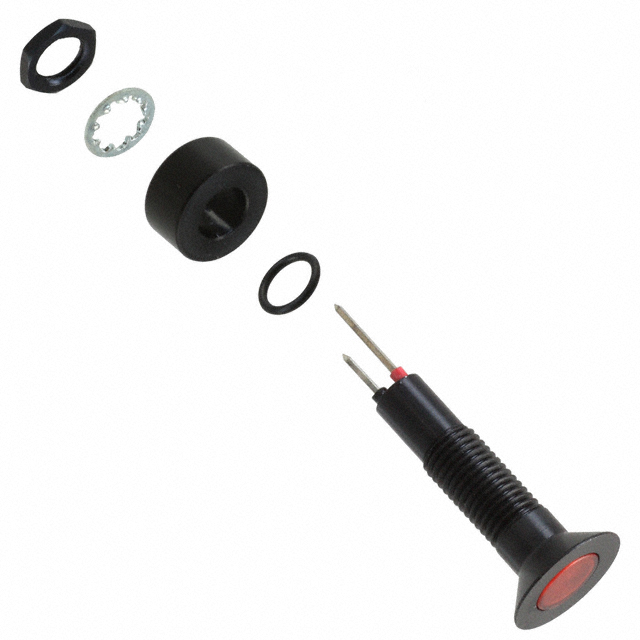

PM5-A12R28V
PANEL MOUNT ASSEM RED, 6.1MMManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
Bivar Inc. PM5 series LED panel indicator, part number PM5-A12R28V, features a red Fresnel lens with a 120° viewing angle. This PC pin termination component is designed for panel mounting with a 6.1mm cutout diameter. It operates at a voltage range of 24V to 28V DC, drawing a current of 20mA. The red LED provides a typical millicandela rating of 39mcd, with a peak wavelength of 660nm. The lens diameter is 6.70mm. This component is suitable for applications requiring robust indicators, offering IP67 ingress protection. Industries such as industrial automation and control systems commonly utilize this type of panel indicator.
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 24V ~ 28V |
| Type | LED |
| Millicandela Rating | 39mcd |
| Termination Style | PC Pin |
| Lens Color | Red |
| Viewing Angle | 120° |
| Ingress Protection | IP67 |
| Ratings | DC |
| Panel Cutout Dimensions | 0.24"" (6.10mm) |
| Wavelength - Peak | 660nm |
| Lens Transparency | Fresnel |
| Lamp Color | Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 6.70mm Dia |
