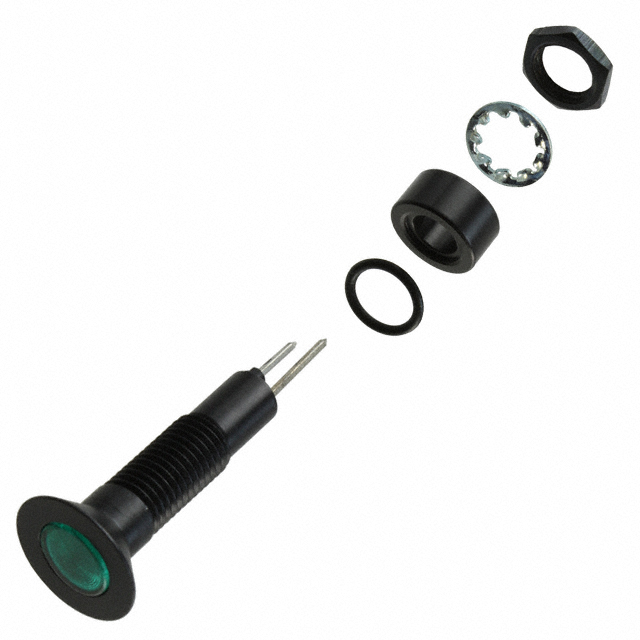

PM5-A12G28V
PANEL MOUNT ASSEM GREEN, 6.1MMManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
Bivar Inc. PM5 Series LED panel indicator, part number PM5-A12G28V, offers a green Fresnel lens with a 120° viewing angle. This component operates at 24V to 28V and draws a current of 20mA, providing a typical millicandela rating of 576mcd. The unit features a 6.10mm round panel cutout and PC pin termination for secure mounting. Designed for robust environments, it boasts IP67 ingress protection. Applications for this LED indicator include industrial control panels, instrumentation, and automotive systems where reliable visual status indication is critical.
Additional Information
Series: PM5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 24V ~ 28V |
| Type | LED |
| Millicandela Rating | 576mcd |
| Termination Style | PC Pin |
| Lens Color | Green |
| Viewing Angle | 120° |
| Ingress Protection | IP67 |
| Ratings | DC |
| Panel Cutout Dimensions | 0.24"" (6.10mm) |
| Wavelength - Peak | 525nm |
| Lens Transparency | Fresnel |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 6.70mm Dia |
