PM3PGTW12.0
PNL MNT GREEN 20MA W/WIRE 12Manufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

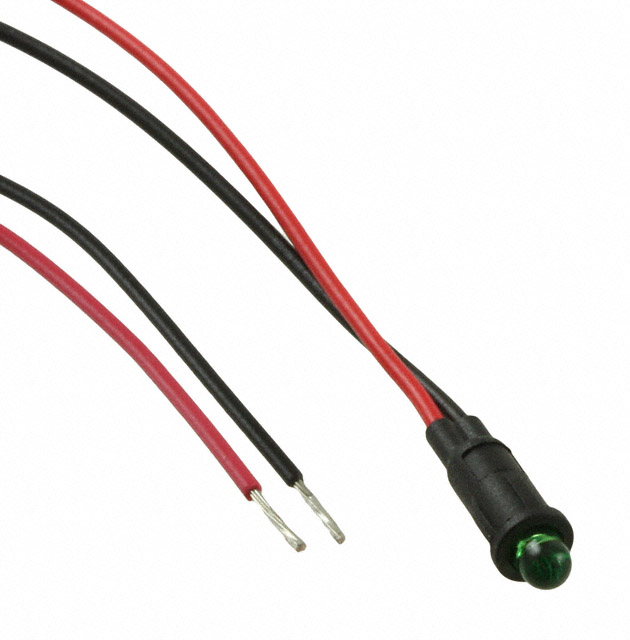

Bivar Inc. PM3 Series LED Panel Indicator, Part Number PM3PGTW12-0, is a green, clear lens, panel-mount indicator featuring wire leads extending 12 inches. This T-1 size indicator operates with a typical forward voltage of 2.2V and a maximum forward current of 30mA, providing a luminous intensity of 10mcd with a 30° viewing angle. The component is designed for a 0.16-inch round panel cutout. Its construction is suitable for applications in industrial automation, control panels, and general equipment status indication.
Additional Information
Series: PM3RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 30mA |
| Voltage | 2.2V |
| Type | LED |
| Millicandela Rating | 10mcd |
| Termination Style | Wire Leads - 12"" (304.80mm) |
| Lens Color | Green |
| Viewing Angle | 30° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.16"" (4.06mm) |
| Wavelength - Peak | 555nm |
| Lens Transparency | Clear |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
