PM3HT
PNL MNT W/ WIRE 625NM 50MCD REDManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
Bivar Inc. PM3 Series LED Panel Indicator, part number PM3HT. This illuminated component features a clear, round lens with a domed top, providing a 30° viewing angle. The LED emits a vibrant red light with a typical forward voltage of 2V and a maximum forward current of 30mA, achieving a luminous intensity of 50 millicandela at a peak wavelength of 625nm. Designed for panel mounting with a standard 0.16-inch (4.06mm) round cutout, this component is commonly utilized in industrial control systems, instrumentation, and general equipment status indication. Supplied in tray packaging.
Additional Information
Series: PM3RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Current | 30mA |
| Voltage | 2V |
| Type | LED |
| Millicandela Rating | 50mcd |
| Termination Style | - |
| Lens Color | Red |
| Viewing Angle | 30° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.16"" (4.06mm) |
| Wavelength - Peak | 625nm |
| Lens Transparency | Clear |
| Lamp Color | Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
Request a Quote
Clients Also Buy

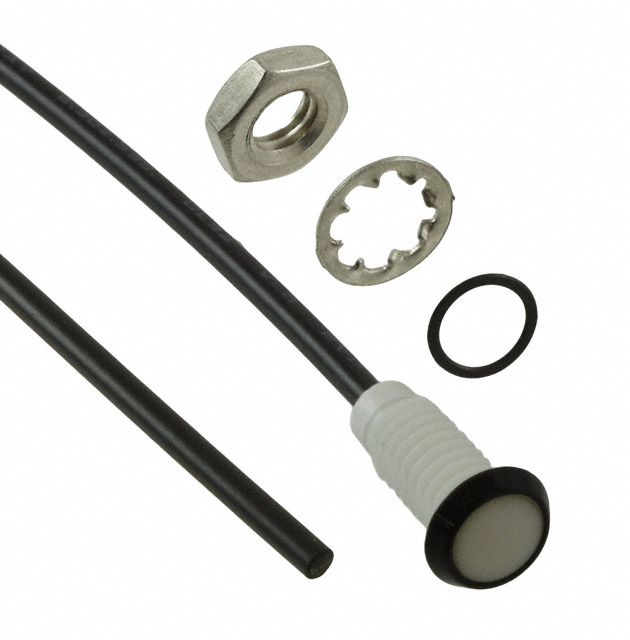

PM3-P1522-10.00
PANEL MOUNT INDICATORS

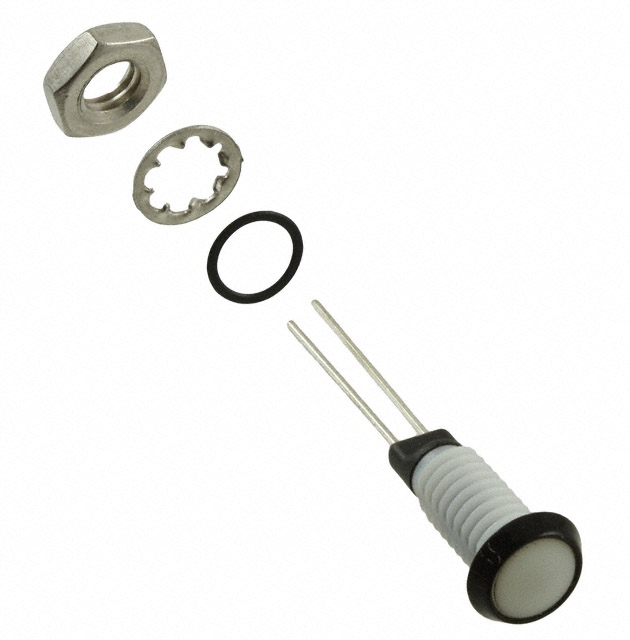

PM3-PAD
PNL MNT 610NM 100MCD AMBER

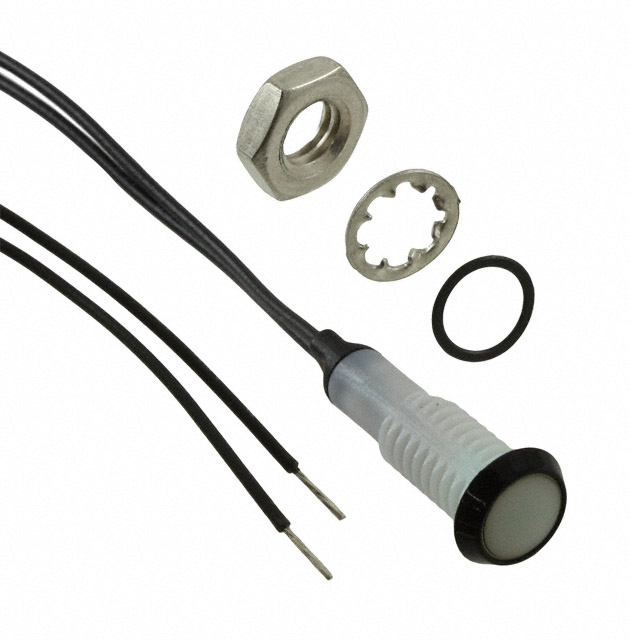

PM3-PADW12.0
