PM3-PRGDW12.0
PNL MNT GREEN 5.8MM LENS 1' WIREManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

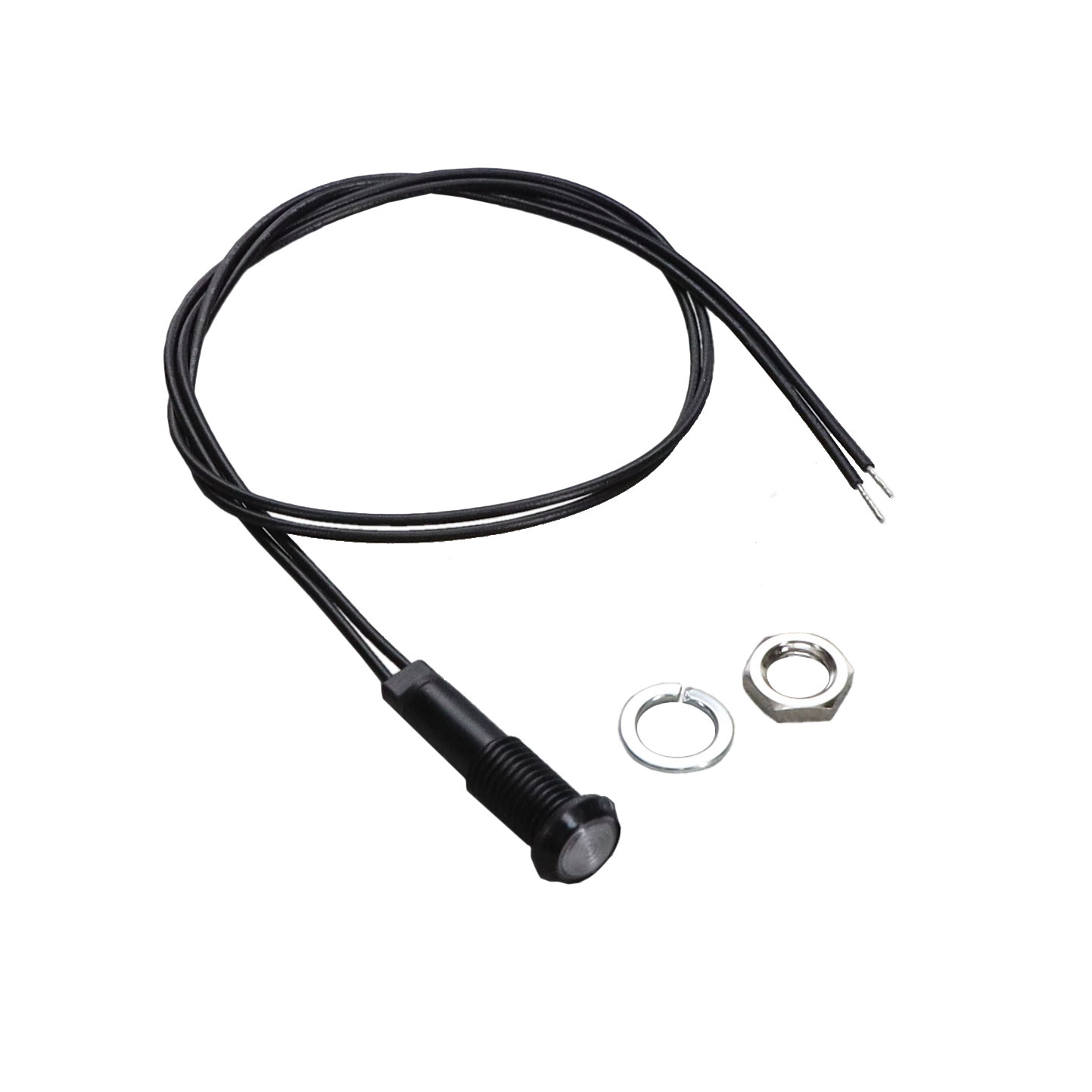

LED Panel Indicator Green 120° 8V ~ 48V 20mA Wire Leads - 12"" (304.80mm)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 8V ~ 48V |
| Type | LED |
| Millicandela Rating | 14mcd |
| Termination Style | Wire Leads - 12"" (304.80mm) |
| Lens Color | - |
| Viewing Angle | 120° |
| Ingress Protection | IP67 |
| Ratings | AC/DC |
| Panel Cutout Dimensions | 0.23"" (5.84mm) |
| Wavelength - Peak | 568nm |
| Lens Transparency | - |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 5.80mm Dia |
