PM3-PBWDW12.0
PNL MNT BLUE 20MA W/WIRE: 12Manufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

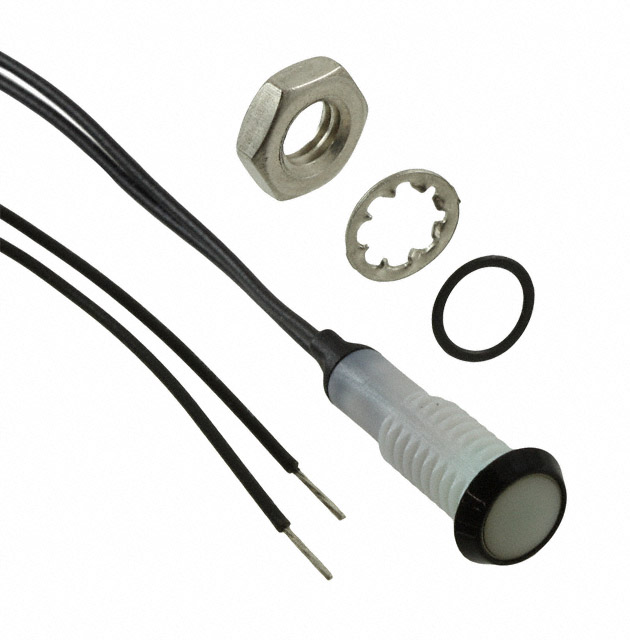

The Bivar Inc. PM3-PBWDW12-0 is a panel-mount LED indicator from the PM3 series, designed for robust industrial applications. This component features a diffused blue LED with a wide 120° viewing angle, emitting a typical luminous intensity of 200mcd at a peak wavelength of 470nm. It is rated for operation across a broad voltage range of 8V to 48V AC/DC, with a standard forward current of 20mA. The unit is equipped with 12-inch wire leads for simplified termination and offers IP67 ingress protection, making it suitable for environments requiring dust and water resistance. The indicator utilizes a white lens with a 5.90mm diameter round, flat-top profile, requiring a 0.19-inch round panel cutout. This component is commonly found in industrial control panels, automation equipment, and general signaling applications where reliable visual status indication is critical.
Additional Information
Series: PM3RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 8V ~ 48V |
| Type | LED |
| Millicandela Rating | 200mcd |
| Termination Style | Wire Leads - 12"" (304.80mm) |
| Lens Color | White |
| Viewing Angle | 120° |
| Ingress Protection | IP67 |
| Ratings | AC/DC |
| Panel Cutout Dimensions | 0.19"" (4.83mm) |
| Wavelength - Peak | 470nm |
| Lens Transparency | Diffused |
| Lamp Color | Blue |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 5.90mm Dia |
