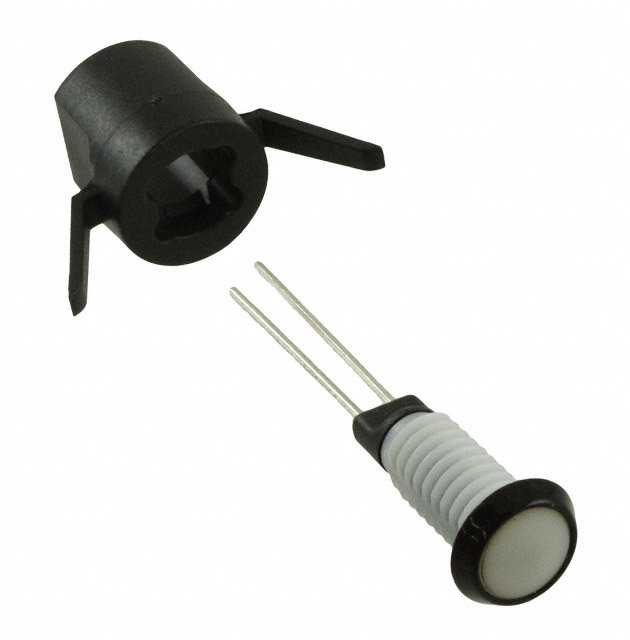

PM3-KRD
PNL MNT 645NM 40MCD 1.7V REDManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
Bivar Inc. PM3 series LED panel indicator, part number PM3-KRD, offers a 1.7V forward voltage and 20mA current rating. This red diffused LED features a 120° viewing angle and a peak wavelength of 645nm, producing a 40mcd luminous intensity. Designed for panel mounting, it requires a 0.19" (4.83mm) round cutout. The lens measures 5.90mm in diameter with a round, flat-top style. This component is suitable for applications in industrial control, telecommunications, and consumer electronics requiring reliable visual status indication.
Additional Information
Series: PM3RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 1.7V |
| Type | LED |
| Millicandela Rating | 40mcd |
| Termination Style | - |
| Lens Color | White |
| Viewing Angle | 120° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.19"" (4.83mm) |
| Wavelength - Peak | 645nm |
| Lens Transparency | Diffused |
| Lamp Color | Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 5.90mm Dia |
