PM3-KPGDW12.0
PNL MNT GREEN 20MA W/WIRE: 12Manufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

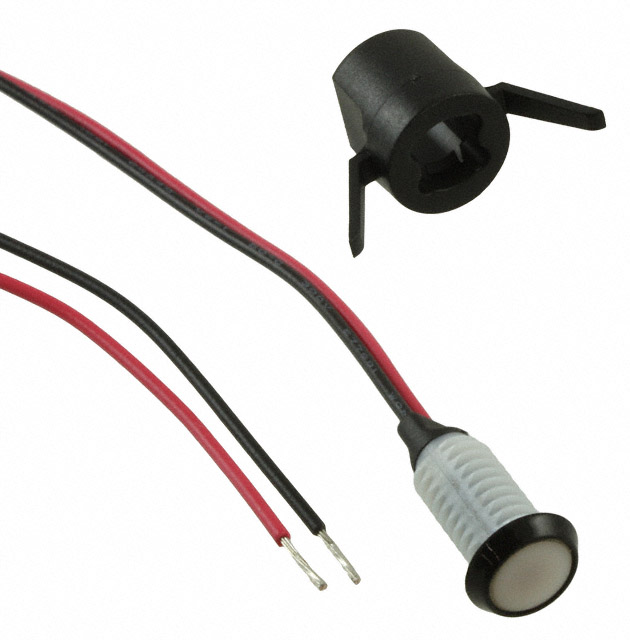

Bivar Inc. PM3 Series PM3-KPGDW12-0 is a panel-mount LED indicator featuring a diffused green lens for wide viewing angles of 120°. This component operates with a typical forward voltage of 2.2V and a maximum forward current of 20mA, delivering a luminous intensity of 20mcd. The indicator is designed for a standard 0.19" (4.83mm) round panel cutout and includes 12" (304.80mm) wire leads for termination. Its diffused lens and green light output make it suitable for applications in industrial control, automation, and general equipment status indication where clear visual feedback is required.
Additional Information
Series: PM3RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 2.2V |
| Type | LED |
| Millicandela Rating | 20mcd |
| Termination Style | Wire Leads - 12"" (304.80mm) |
| Lens Color | White |
| Viewing Angle | 120° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.19"" (4.83mm) |
| Wavelength - Peak | 555nm |
| Lens Transparency | Diffused |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 5.90mm Dia |
