PM3-KGD
PNL MNT 568NM 30MCD 2.1V GREENManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

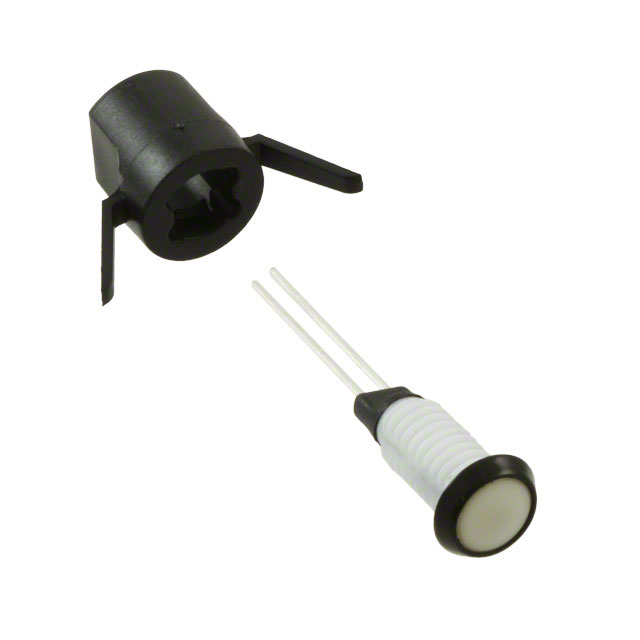

Bivar Inc. PM3 series LED panel indicator, part number PM3-KGD. This diffused green LED features a 120° viewing angle and a typical forward voltage of 2.1V at 20mA. The luminous intensity is rated at 30 millicandela with a peak wavelength of 568nm. Designed for panel mounting, it requires a 0.19" (4.83mm) round cutout. The white lens has a diameter of 5.90mm and a flat-top round style. This component is commonly utilized in industrial automation, control panels, and general equipment indication applications.
Additional Information
Series: PM3RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 2.1V |
| Type | LED |
| Millicandela Rating | 30mcd |
| Termination Style | - |
| Lens Color | White |
| Viewing Angle | 120° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.19"" (4.83mm) |
| Wavelength - Peak | 568nm |
| Lens Transparency | Diffused |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 5.90mm Dia |
