PM3-KBWDW12.0
PNL MNT BLUE 20MA W/WIRE: 12Manufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

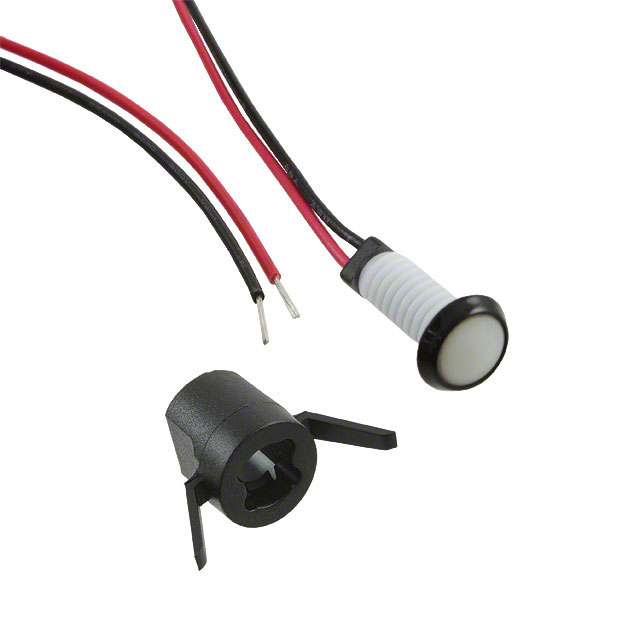

Bivar Inc. PM3 Series LED Panel Indicator, part number PM3-KBWDW12-0, offers a diffused blue light output with a 120° viewing angle. This panel mount indicator features a 5.90mm diameter round lens with a flat top and a white lens color, designed for a 0.19"" (4.83mm) round panel cutout. It operates at a typical forward voltage of 4V and a maximum forward current of 20mA, yielding a typical luminous intensity of 200mcd at a peak wavelength of 470nm. The component is terminated with 12-inch wire leads for flexible integration. This indicator is suitable for applications in industrial control, instrumentation, and general status indication.
Additional Information
Series: PM3RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 4V |
| Type | LED |
| Millicandela Rating | 200mcd |
| Termination Style | Wire Leads - 12"" (304.80mm) |
| Lens Color | White |
| Viewing Angle | 120° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.19"" (4.83mm) |
| Wavelength - Peak | 470nm |
| Lens Transparency | Diffused |
| Lamp Color | Blue |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 5.90mm Dia |
