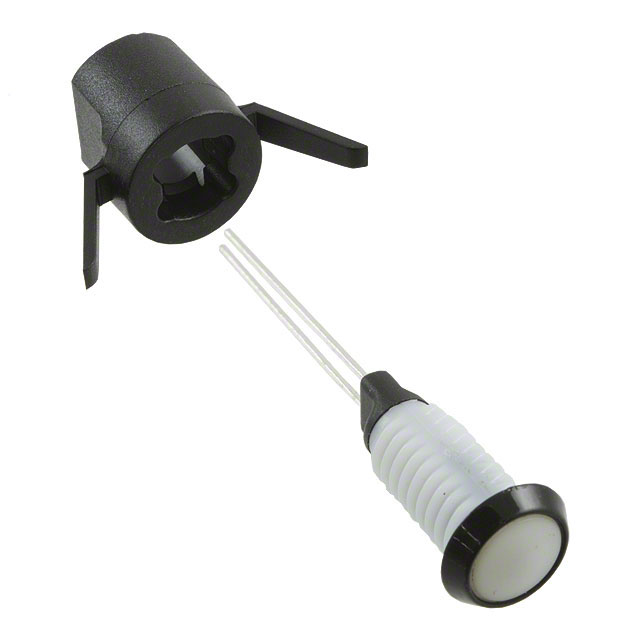

PM3-KBWD
PNL MNT 470NM 200MCD 4V BLUEManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
Bivar Inc. PM3 Series LED Panel Indicator, part number PM3-KBWD, offers a 470nm blue diffused light source with a typical forward voltage of 4V and a maximum forward current of 20mA. This panel mount indicator features a 200mcd luminous intensity and a wide 120° viewing angle, ensuring excellent visibility. The 5.90mm diameter round lens with a flat top, and diffused transparency, contributes to a uniform light output. Designed for standard 0.19" (4.83mm) round panel cutouts, this component is suitable for applications in industrial control, instrumentation, and telecommunications.
Additional Information
Series: PM3RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 4V |
| Type | LED |
| Millicandela Rating | 200mcd |
| Termination Style | - |
| Lens Color | White |
| Viewing Angle | 120° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.19"" (4.83mm) |
| Wavelength - Peak | 470nm |
| Lens Transparency | Diffused |
| Lamp Color | Blue |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 5.90mm Dia |
