PM3-KADW12.0
PNL MNT AMBER 20MA W/WIRE: 12Manufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

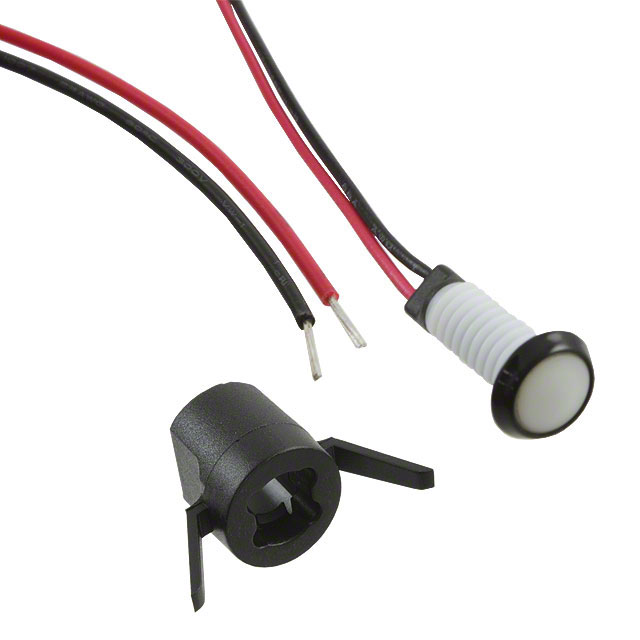

Bivar Inc. PM3 Series LED Panel Indicator, part number PM3-KADW12-0, offers a diffused amber illumination with a 120° viewing angle. This panel-mount indicator is designed for a typical forward voltage of 2V and a maximum forward current of 20mA, achieving a millicandela rating of 100mcd at its peak wavelength of 610nm. The unit features a 5.90mm diameter round lens with a flat top and is terminated with 12-inch wire leads for straightforward integration. The panel cutout is a standard 0.19-inch round aperture. This component is widely utilized in industrial automation, control systems, and general equipment indication applications where reliable visual status feedback is critical.
Additional Information
Series: PM3RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 2V |
| Type | LED |
| Millicandela Rating | 100mcd |
| Termination Style | Wire Leads - 12"" (304.80mm) |
| Lens Color | White |
| Viewing Angle | 120° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.19"" (4.83mm) |
| Wavelength - Peak | 610nm |
| Lens Transparency | Diffused |
| Lamp Color | Amber |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 5.90mm Dia |
