PM3-KAD
PNL MNT 610NM 100MCD 2V AMBERManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

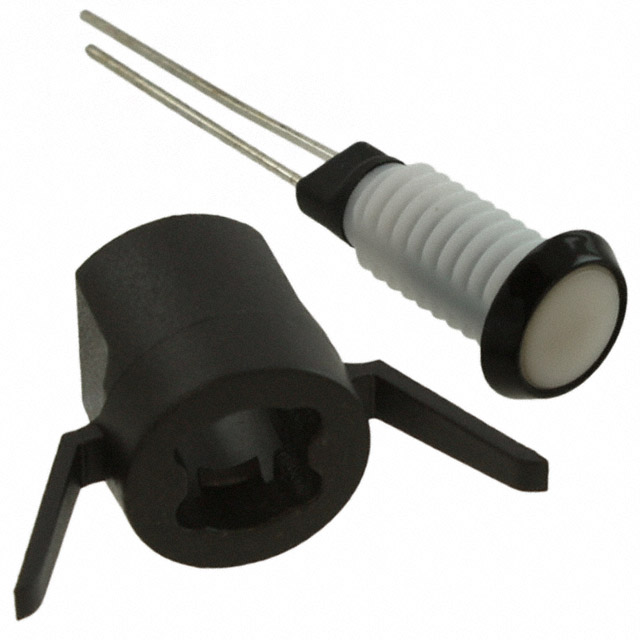

Bivar Inc. PM3 Series LED Panel Indicator, part number PM3-KAD, offers a diffused amber light source with a typical forward voltage of 2V and a maximum continuous forward current of 20mA. This panel mount indicator features a 100mcd millicandela rating and a wide 120° viewing angle, emitting light at a peak wavelength of 610nm. The round lens, with a diameter of 5.90mm and a flat top, is white and diffused to provide even light distribution. Designed for a 0.19-inch (4.83mm) round panel cutout, this component is suitable for industrial automation, control systems, and general equipment status indication applications.
Additional Information
Series: PM3RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 20mA |
| Voltage | 2V |
| Type | LED |
| Millicandela Rating | 100mcd |
| Termination Style | - |
| Lens Color | White |
| Viewing Angle | 120° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.19"" (4.83mm) |
| Wavelength - Peak | 610nm |
| Lens Transparency | Diffused |
| Lamp Color | Amber |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 5.90mm Dia |
