MPR5GC
PNL MNT W/ WIRE 568NM 40MCD GRNManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

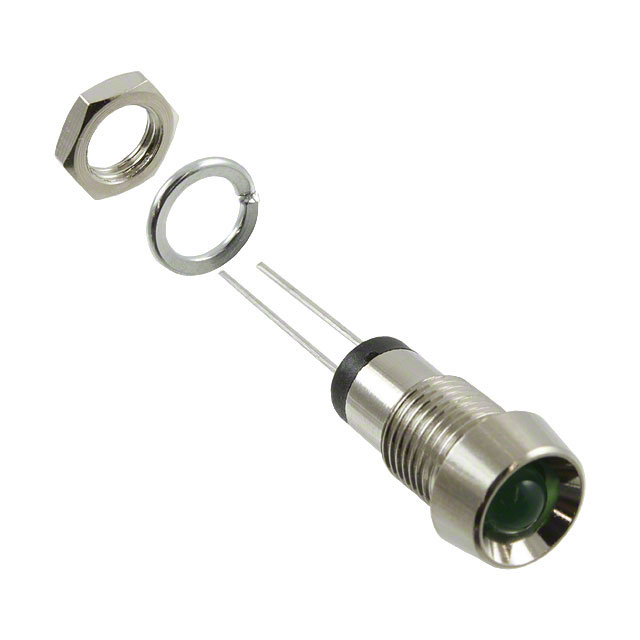

Bivar Inc. presents the MPR5GC, a panel-mount LED indicator from the MPR5 series. This component features a clear, round, domed lens with a 5mm (T-1 3/4) size, providing a 35° viewing angle. The green LED emits light at a peak wavelength of 568nm, achieving a typical luminous intensity of 40 millicandela at a forward current of 30mA. Operating at a forward voltage of 2.1V, the MPR5GC is designed for panel mounting with a standard 0.32" (8.13mm) round cutout. This indicator is commonly utilized in industrial automation, control panels, and instrumentation applications where reliable visual status indication is critical. The component is supplied in trays.
Additional Information
Series: MPR5RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Current | 30mA |
| Voltage | 2.1V |
| Type | LED |
| Millicandela Rating | 40mcd |
| Termination Style | - |
| Lens Color | Colorless |
| Viewing Angle | 35° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.32"" (8.13mm) |
| Wavelength - Peak | 568nm |
| Lens Transparency | Clear |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
