MPR3GT
PNL MNT W/ WIRE 568NM 40MCD GRNManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

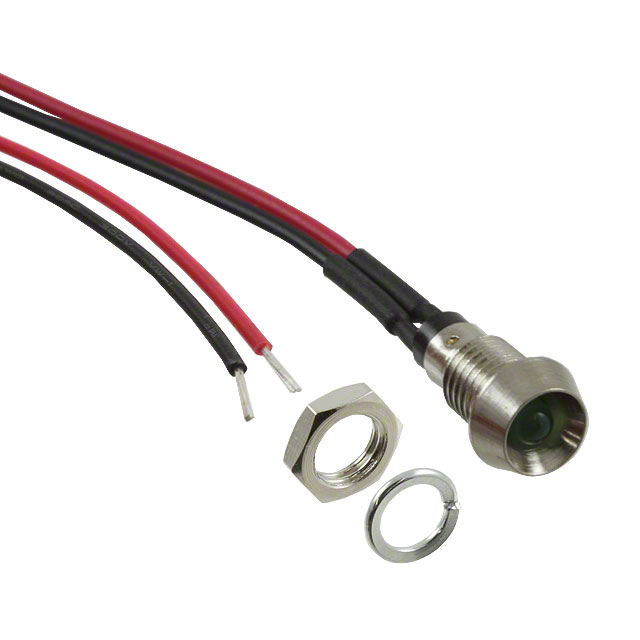

Bivar Inc. MPR3 Series LED Panel Indicator, part number MPR3GT. This T-1, 3mm round LED panel mount features a clear, domed lens with a green lamp and lens color. Emitting a vibrant 568nm green light with a typical forward voltage of 2.1V and a maximum forward current of 30mA, it delivers a luminous intensity of 40mcd at a 20° viewing angle. Designed for panel mounting with a 0.24" (6.10mm) round cutout, this indicator is suitable for a wide range of applications across industrial automation, control panels, and equipment status signaling. Packaged in trays.
Additional Information
Series: MPR3RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Current | 30mA |
| Voltage | 2.1V |
| Type | LED |
| Millicandela Rating | 40mcd |
| Termination Style | - |
| Lens Color | Green |
| Viewing Angle | 20° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.24"" (6.10mm) |
| Wavelength - Peak | 568nm |
| Lens Transparency | Clear |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
