MPR3BWCW12.0
PNL MNT BLUE W/WIRE 12Manufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

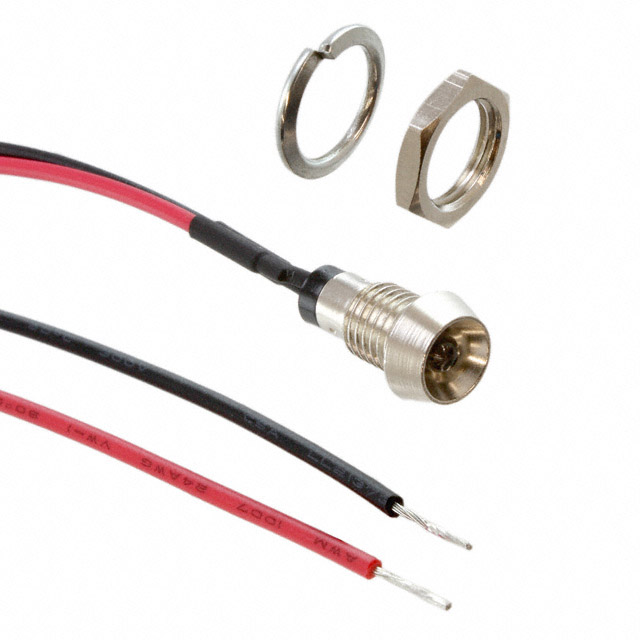

Bivar Inc. MPR3 Series LED Panel Indicator, part number MPR3BWCW12-0, is a blue indicator designed for panel mounting. This unit features a clear, domed-top lens with a 3mm diameter and a narrow 20° viewing angle. It operates with a typical forward voltage (Vf) of 4V and a maximum forward current (If) of 25mA, producing a standard intensity of 15mcd at a peak wavelength of 430nm. The indicator is supplied with 12 inches of wire leads for termination and is intended for a 0.24-inch round panel cutout. This component is commonly utilized in industrial automation, control panels, and general equipment status indication.
Additional Information
Series: MPR3RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 25mA |
| Voltage | 4V |
| Type | LED |
| Millicandela Rating | 15mcd |
| Termination Style | Wire Leads - 12"" (304.80mm) |
| Lens Color | Colorless |
| Viewing Angle | 20° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.24"" (6.10mm) |
| Wavelength - Peak | 430nm |
| Lens Transparency | Clear |
| Lamp Color | Blue |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
