MPC5ATW12.0
PNL MNT AMBER W/WIRE 12Manufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

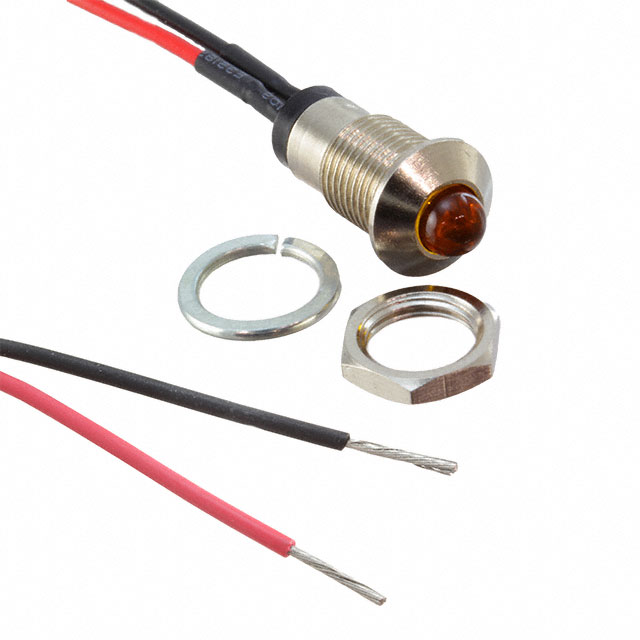

Bivar Inc. MPC5ATW12-0 is a panel mount LED indicator in the MPC5 series. This component features an amber LED with a clear, domed T-1 3/4 lens, providing a 35° viewing angle. It operates at a typical forward voltage (Vf) of 2V and a maximum forward current (If) of 30mA, delivering 40mcd of luminous intensity at a peak wavelength of 605nm. The unit is equipped with 12-inch wire leads for termination and is designed for panel mounting with a standard 0.32-inch round cutout. This component is suitable for applications in industrial control, telecommunications, and consumer electronics where clear visual status indication is required.
Additional Information
Series: MPC5RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 30mA |
| Voltage | 2V |
| Type | LED |
| Millicandela Rating | 40mcd |
| Termination Style | Wire Leads - 12"" (304.80mm) |
| Lens Color | Amber |
| Viewing Angle | 35° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.32"" (8.13mm) |
| Wavelength - Peak | 605nm |
| Lens Transparency | Clear |
| Lamp Color | Amber |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
