MPC3AT
PNL MNT W/ WIRE 605NM 40MCD AMBRManufacturer: Bivar Inc.
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
Bivar Inc. MPC3 Series LED panel indicator, part number MPC3AT, offers a 605nm amber light output with a typical forward voltage of 2V and a maximum forward current of 30mA. This T-1 size LED features a clear, domed lens providing a 20° viewing angle and a millicandela rating of 40mcd. Designed for panel mounting with a 0.24-inch (6.10mm) round cutout, this component is commonly utilized in industrial control, automation, and general signaling applications. The MPC3AT is supplied in trays.
Additional Information
Series: MPC3RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Current | 30mA |
| Voltage | 2V |
| Type | LED |
| Millicandela Rating | 40mcd |
| Termination Style | - |
| Lens Color | Amber |
| Viewing Angle | 20° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.24"" (6.10mm) |
| Wavelength - Peak | 605nm |
| Lens Transparency | Clear |
| Lamp Color | Amber |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
Request a Quote
Clients Also Buy
MPC3AD
PNL MNT W/ WIRE 605NM 25MCD AMBR
MPC3ADW12.0
PNL MNT AMBER W/WIRE 12

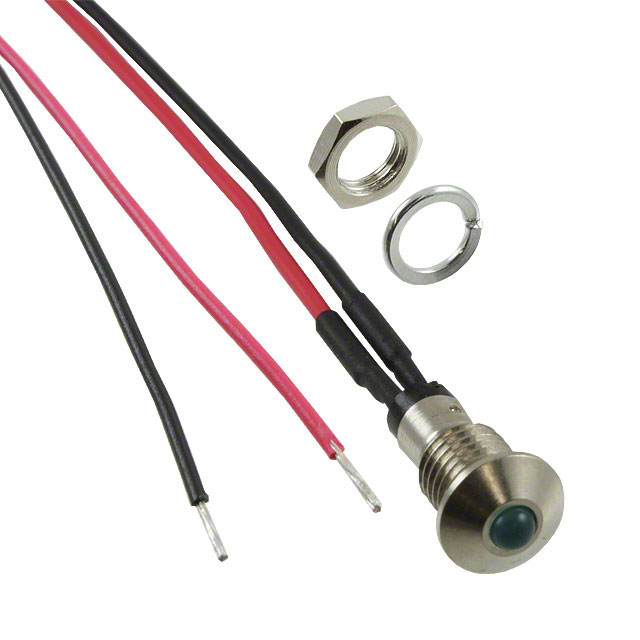

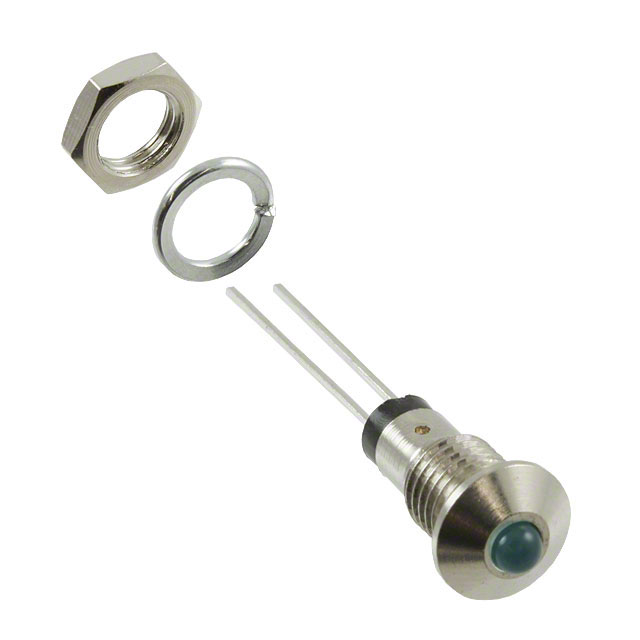

MPC3BWD
