SM5730UWDC05
LED SM5730 COOL WHITE 6000K 5730Manufacturer: Bivar Inc.
Categories: LED White Lighting
Quality Control: Learn More
The Bivar Inc. SM5730UWDC05 is a surface-mount LED component from the SM5730 series, designed for efficient white lighting applications. This cool white LED emits light with a Correlated Color Temperature (CCT) of 6000K and a Color Rendering Index (CRI) of 80. At a test current of 150mA, it typically delivers 57 lumens with a luminous efficacy of 121 lm/W. The forward voltage (Vf) is 3.15V, and it features a wide 120° viewing angle. Packaged in a 2-SMD configuration with flat leads, its dimensions are 4.80mm x 2.50mm with a maximum seated height of 1.00mm. This component is supplied on tape and reel, making it suitable for automated assembly processes in industries such as general illumination, architectural lighting, and automotive lighting.
Additional Information
Series: SM5730RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Flat Leads |
| Color | White, Cool |
| Size / Dimension | 0.189"" L x 0.098"" W (4.80mm x 2.50mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.15V |
| Current - Test | 150mA |
| Viewing Angle | 120° |
| Current - Max | - |
| Supplier Device Package | 5730 |
| Lumens/Watt @ Current - Test | 121 lm/W |
| Height - Seated (Max) | 0.039"" (1.00mm) |
| CCT (K) | 6000K |
| CRI (Color Rendering Index) | 80 |
| Flux @ 25°C, Current - Test | 57lm (Typ) |
| Flux @ 85°C, Current - Test | - |
Request a Quote
Clients Also Buy
SM5730UWDN05
LED SM5730 NEUT WHT 4000K 5730
SM5730UWDW05
LED SM5730 WARM WHT 3000K 5730

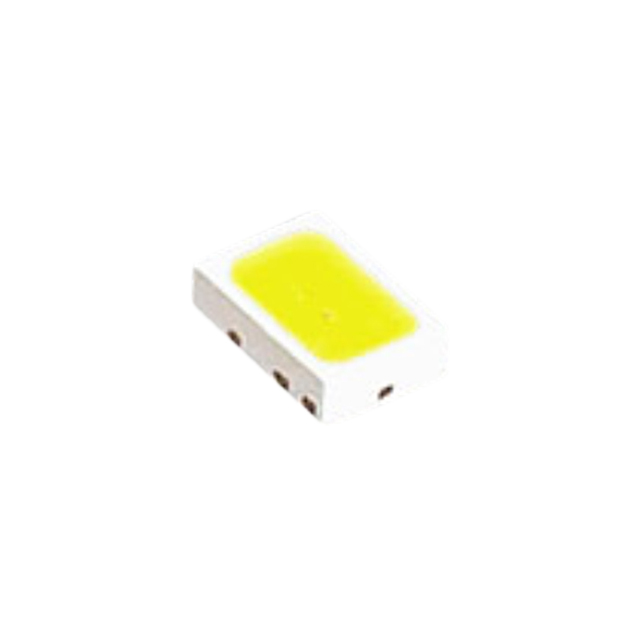

SME2014UWDC05
