UV-405-TO92
LED BLUE CLEAR TO92 T/HManufacturer: Bivar Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More
Bivar Inc. UV-405-TO92 is a discrete blue LED housed in a TO-92 package (TO-226-2, TO-92-2). This through-hole component features a clear, colorless lens with a domed top and a 4.80mm diameter. The LED operates with a typical forward voltage of 3.7V and a test current of 20mA. The dominant wavelength is 430nm, with a peak wavelength of 405nm, providing distinct blue light indication. Its narrow viewing angle of 30° makes it suitable for applications requiring directional illumination. This component is commonly found in industrial automation, medical equipment, and consumer electronics for status indication. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | TO-226-2, TO-92-2 (TO-226AC) |
| Color | Blue |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | - |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.7V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 30° |
| Height (Max) | 7.00mm |
| Wavelength - Peak | 405nm |
| Wavelength - Dominant | 430nm |
| Supplier Device Package | TO-92 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 4.80mm Dia |
Request a Quote
Clients Also Buy

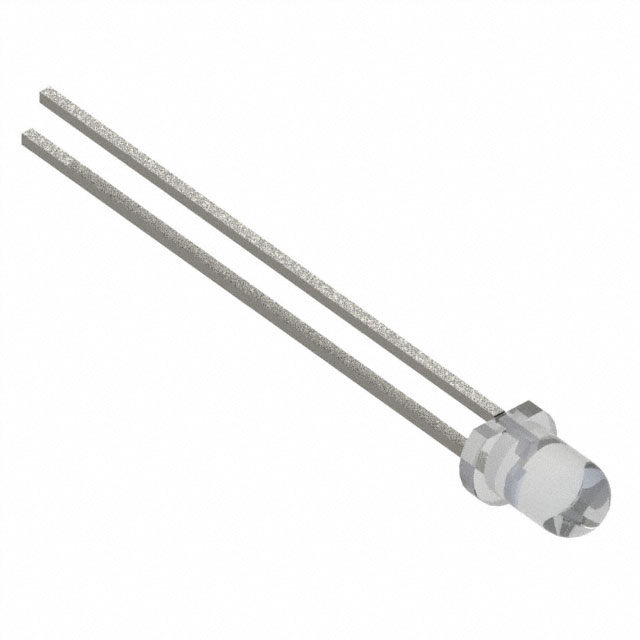

3UWC5.035C-F
LED COOL WHITE CLEAR 3MM T/H
5UWC20.025W-F
LED WARM WHITE CLEAR 5MM T/H

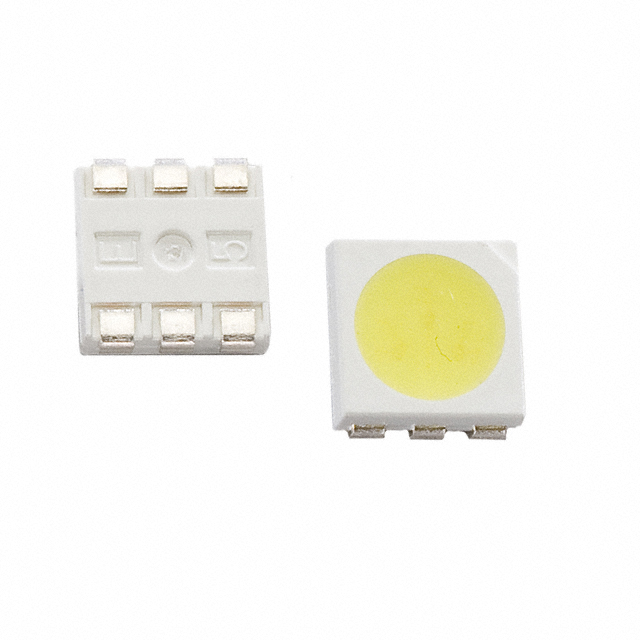

SMTL6-UWDN
