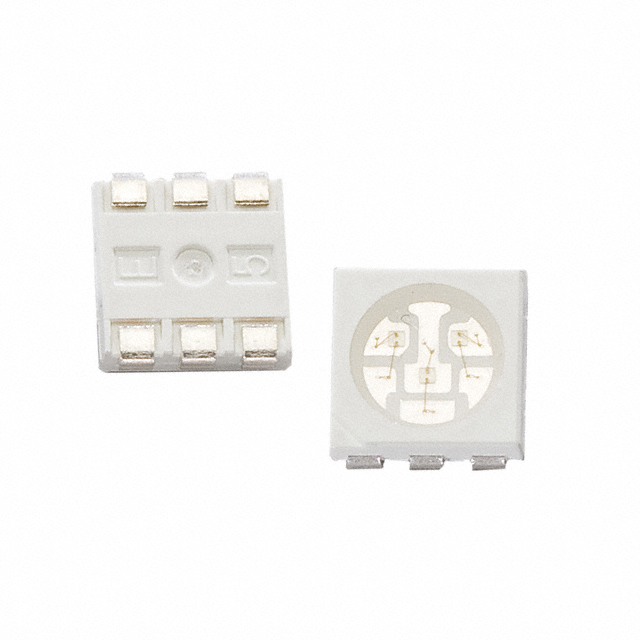

SMTL6-RGB
LED RGB CLEAR 6PLCC SMDManufacturer: Bivar Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More
The Bivar Inc. SMTL6-RGB is a 6-PLCC surface-mount LED component featuring independent Red, Green, and Blue emitters. This component offers distinct dominant wavelengths of 624nm for red, 525nm for green, and 470nm for blue, with typical forward voltages of 2.2V (Red), 3V (Green), and 3V (Blue) at a 20mA test current. The clear, colorless lens provides a 120° viewing angle with luminous intensity ratings of 900mcd (Red), 1500mcd (Green), and 300mcd (Blue). Measuring 5.40mm L x 5.00mm W with a maximum height of 1.60mm, this LED is supplied in Tape & Reel packaging. Applications include industrial automation, lighting systems, and user interface indicators.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, J-Lead |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 5.40mm L x 5.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 900mcd Red,1500mcd Green, 300mcd Blue |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.2V Red, 3V Green, 3V Blue |
| Lens Color | Colorless |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Height (Max) | 1.60mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 624nm Red, 525nm Green, 470nm Blue |
| Supplier Device Package | 6-PLCC |
| Lens Transparency | Clear |
| Grade | - |
| Lens Style | Round with Flat Top |
| Lens Size | 4.00mm Dia |
| Qualification | - |
