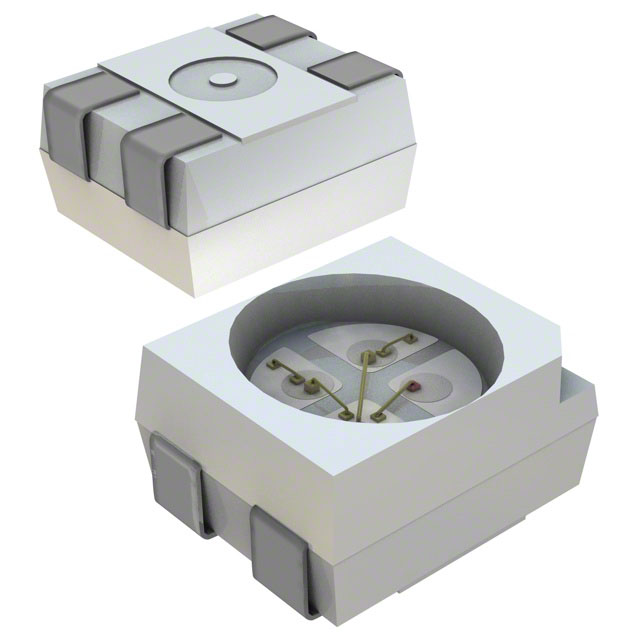

SMTL4-RYB
LED BLUE/RED/YL CLR 4PLCC SMDManufacturer: Bivar Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More
Blue, Red, Yellow 466nm Blue, 640nm Red, 585nm Yellow LED Indication - Discrete 3.3V Blue, 1.85V Red, 1.9V Yellow 4-PLCC
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | Blue, Red, Yellow |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 50mcd Blue, 36mcd Red, 16mcd Yellow |
| Configuration | Common Anode |
| Voltage - Forward (Vf) (Typ) | 3.3V Blue, 1.85V Red, 1.9V Yellow |
| Lens Color | Colorless |
| Current - Test | 20mA Blue, 20mA Red, 20mA Yellow |
| Viewing Angle | 120° |
| Height (Max) | 2.05mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 466nm Blue, 640nm Red, 585nm Yellow |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
