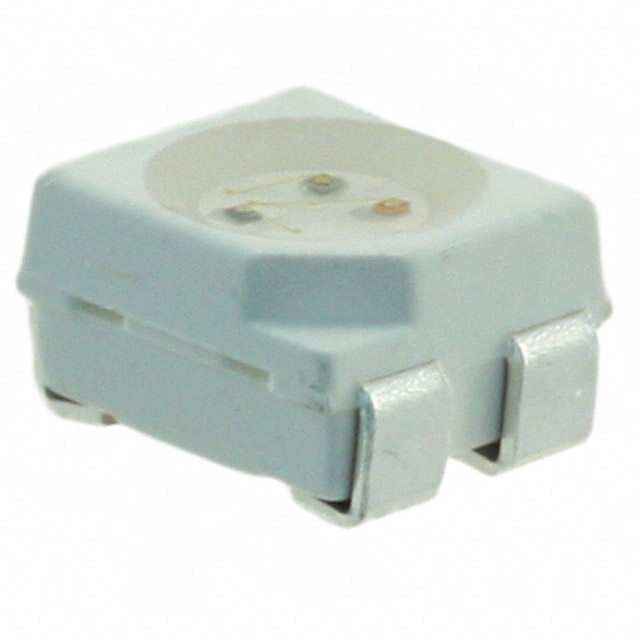

SMTL4-RGB
LED RGB CLEAR 4PLCC SMDManufacturer: Bivar Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More
Red, Green, Blue (RGB) 640nm Red, 570nm Green, 466nm Blue LED Indication - Discrete 1.9V Red, 2.3V Green, 4.3V Blue 4-PLCC
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 28.5mcd Red, 22.5mcd Green, 11.5mcd Blue |
| Configuration | Common Anode |
| Voltage - Forward (Vf) (Typ) | 1.9V Red, 2.3V Green, 4.3V Blue |
| Lens Color | Colorless |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Height (Max) | 2.05mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 640nm Red, 570nm Green, 466nm Blue |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
