SMS1105PKD
LED PINK DIFFUSED 2PLCC SMD R/AManufacturer: Bivar Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

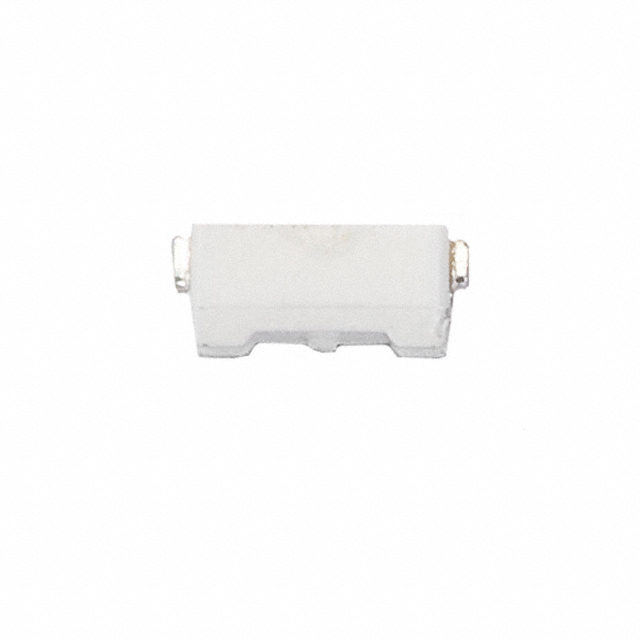

Bivar Inc. SMS1105PKD is a discrete LED indication component featuring a diffused pink lens. This right-angle, surface-mount device utilizes a 2-PLCC package with a 2-SMD, J-Lead configuration, measuring 2.80mm L x 1.20mm W with a maximum height of 0.80mm. It operates with a typical forward voltage of 3.4V and a test current of 20mA, achieving a millicandela rating of 200mcd. The diffused lens, with a yellow tint, provides a wide viewing angle of 120°. This component is commonly found in industrial automation, medical devices, and consumer electronics applications. The SMS1105PKD is supplied on tape and reel.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, J-Lead |
| Color | Pink |
| Size / Dimension | 2.80mm L x 1.20mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 200mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.4V |
| Lens Color | Yellow |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 0.80mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.50mm x 0.80mm |
Request a Quote
