SMP6-UWDN
LED WHITE/NEUTRAL DIFF 6PLCC SMDManufacturer: Bivar Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

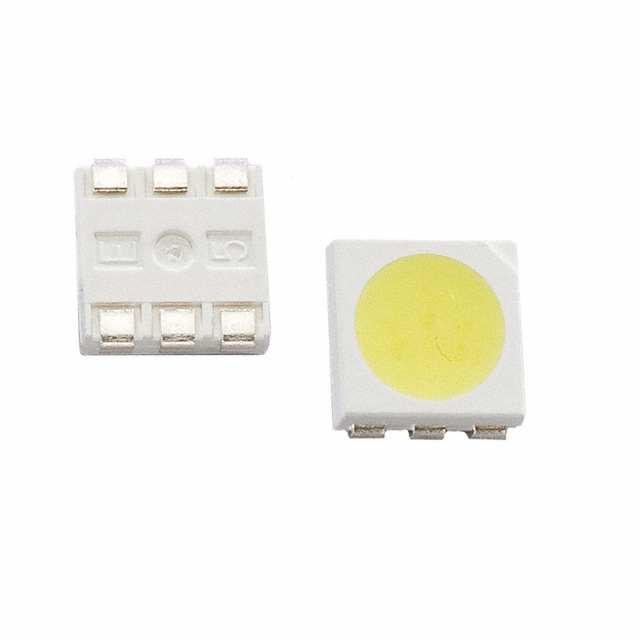

Bivar Inc. SMP6-UWDN is a diffused, neutral white LED with a 5500K color temperature, designed for surface mount applications. This discrete LED component, housed in a 6-SMD, J-Lead package (6-PLCC), features a 3.3V typical forward voltage and a 60mA test current, yielding 4000mcd luminous intensity. The 5.00mm L x 5.00mm W dimension, with a maximum height of 1.50mm, integrates a 4.00mm diameter round lens with a flat top and a yellow lens color. Its broad 140° viewing angle makes it suitable for various indication applications across industrial control, medical equipment, and consumer electronics sectors. The component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, J-Lead |
| Color | White, Neutral |
| Size / Dimension | 5.00mm L x 5.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 4000mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Lens Color | Yellow |
| Current - Test | 60mA |
| Viewing Angle | 140° |
| Height (Max) | 1.50mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 5500K |
| Supplier Device Package | 6-PLCC |
| Lens Transparency | Diffused |
| Lens Style | Round with Flat Top |
| Lens Size | 4.00mm Dia |
