SMP6-RGB
LED RGB CLEAR 6PLCC SMDManufacturer: Bivar Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

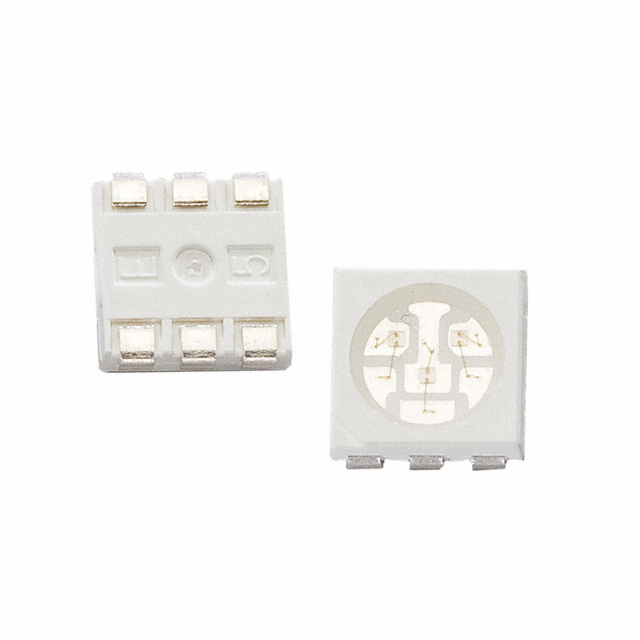

The Bivar Inc. SMP6-RGB is a 6-PLCC surface mount LED with independent Red, Green, and Blue emitters. This component features a clear lens and a compact 5.00mm L x 5.00mm W footprint with a maximum height of 1.50mm. It is designed for indicator applications requiring precise color mixing and visual feedback in the automotive, industrial automation, and consumer electronics sectors. Each emitter has a typical forward voltage of 2.1V for Red and 3.3V for Green and Blue, with test currents of 20mA for all colors. The dominant wavelengths are 626nm (Red), 526nm (Green), and 471nm (Blue), providing distinct color outputs. The LED offers a wide 140° viewing angle and millicandela ratings of 600mcd (Red), 800mcd (Green), and 350mcd (Blue). This device is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, J-Lead |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 5.00mm L x 5.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 600mcd Red, 800mcd Green, 350mcd Blue |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.3V Green, 3.3V Blue |
| Lens Color | Colorless |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 140° |
| Height (Max) | 1.50mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 626nm Red, 526nm Green, 471nm Blue |
| Supplier Device Package | 6-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 4.00mm Dia |
