SMP6-GC
LED GREEN CLEAR 6PLCC SMDManufacturer: Bivar Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

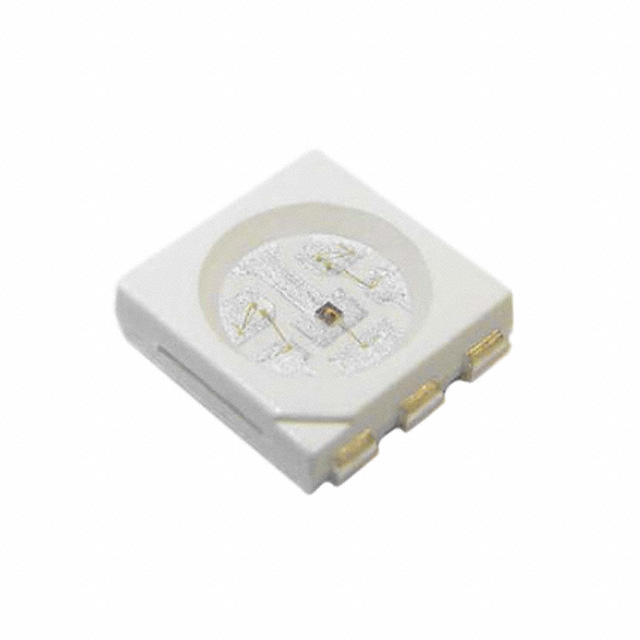

Bivar Inc. SMP6-GC is a green LED housed in a 6-SMD, J-Lead package, designed for surface mounting. This discrete LED offers a dominant wavelength of 526nm and a typical forward voltage of 3.3V. It features a clear, colorless lens with a round, flat-top style, providing a wide viewing angle of 140 degrees. The SMP6-GC is rated for 2100mcd at a test current of 60mA. Its dimensions are 5.00mm in length and 5.00mm in width, with a maximum height of 1.50mm. This component is commonly utilized in industrial automation, medical equipment, and consumer electronics for indication purposes. The SMP6-GC is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, J-Lead |
| Color | Green |
| Size / Dimension | 5.00mm L x 5.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 2100mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Lens Color | Colorless |
| Current - Test | 60mA |
| Viewing Angle | 140° |
| Height (Max) | 1.50mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 526nm |
| Supplier Device Package | 6-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 4.00mm Dia |
