SMP4-SRYB
LED BLUE/RED/YL CLR 4PLCC SMDManufacturer: Bivar Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

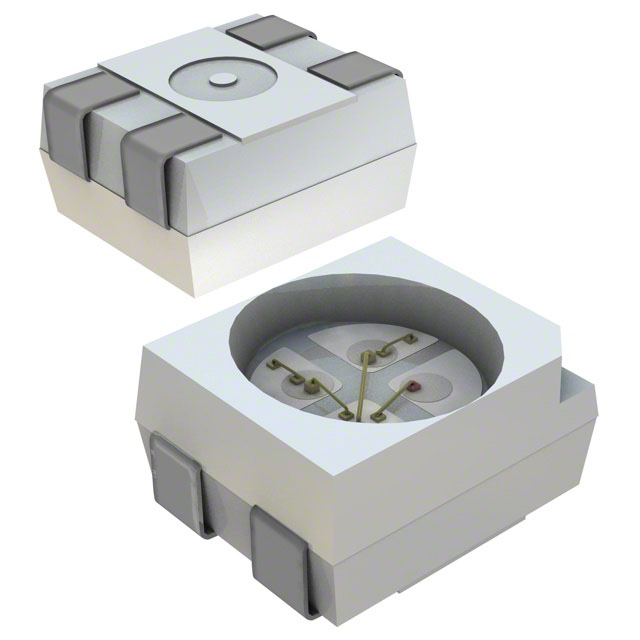

Bivar Inc. SMP4-SRYB is a 4-PLCC surface mount LED offering discrete illumination in Blue, Red, and Yellow. This component features a common anode configuration and operates with a typical forward voltage of 3.2V for Blue, and 1.9V for both Red and Yellow. The dominant wavelengths are 470nm for Blue, 631nm for Red, and 591nm for Yellow. Each color provides a millicandela rating of 285mcd for Blue and 180mcd for Red and Yellow, tested at 20mA. The LED has a clear, colorless lens with a round, flat-top style measuring 2.40mm in diameter, and the overall package dimensions are 3.20mm L x 2.80mm W with a maximum height of 1.85mm. The viewing angle is 120°. This component is commonly utilized in industrial automation, automotive lighting, and general status indication applications. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | Blue, Red, Yellow |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 285mcd Blue, 180mcd Red, 180mcd Yellow |
| Configuration | Common Anode |
| Voltage - Forward (Vf) (Typ) | 3.2V Blue, 1.9V Red, 1.9V Yellow |
| Lens Color | Colorless |
| Current - Test | 20mA Blue, 20mA Red, 20mA Yellow |
| Viewing Angle | 120° |
| Height (Max) | 1.85mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 470nm Blue, 631nm Red, 591nm Yellow |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
