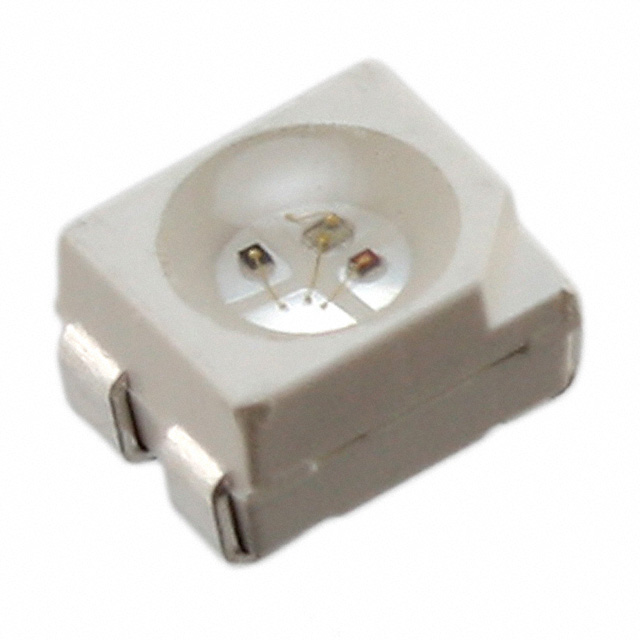

SMP4-SRGY
LED GREEN/RED/YL CLR 4PLCC SMDManufacturer: Bivar Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More
Bivar Inc. SMP4-SRGY is a 4-PLCC surface mount LED offering tri-color indication with Green (525nm), Red (631nm), and Yellow (591nm) emitters. This component features a common anode configuration with typical forward voltages of 3.3V for Green and 1.9V for Red and Yellow. Tested at 20mA, the luminous intensity is rated at 1050mcd for Green, 180mcd for Red, and 180mcd for Yellow, with a wide 120° viewing angle. The colorless lens is round with a flat top, measuring 2.40mm in diameter, housed within a 3.20mm L x 2.80mm W footprint with a maximum height of 1.85mm. This discrete LED is supplied on tape and reel (TR) and is suitable for applications in industrial automation, medical equipment, and consumer electronics where multi-color visual feedback is required.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | Green, Red, Yellow |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 1050mcd Green, 180mcd Red, 180mcd Yellow |
| Configuration | Common Anode |
| Voltage - Forward (Vf) (Typ) | 3.3V Green, 1.9V Red, 1.9V Yellow |
| Lens Color | Colorless |
| Current - Test | 20mA Green, 20mA Red, 20mA Yellow |
| Viewing Angle | 120° |
| Height (Max) | 1.85mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 525nm Green, 631nm Red, 591nm Yellow |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
