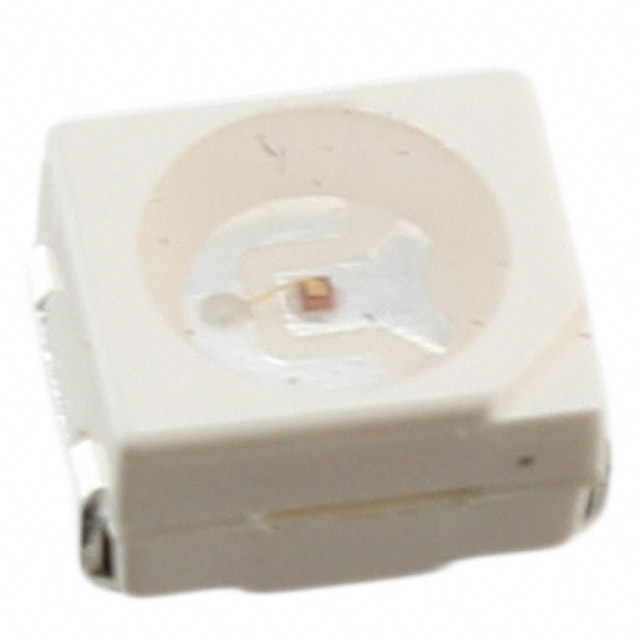

SMP4-SRGB
LED RGB CLEAR 4PLCC SMDManufacturer: Bivar Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More
Bivar Inc. SMP4-SRGB is a 4-PLCC surface mount LED indicator featuring Red, Green, and Blue primary colors with a common anode configuration. This discrete LED component provides distinct wavelengths of 631nm for red, 525nm for green, and 470nm for blue, with typical forward voltages of 1.9V (Red), 3.3V (Green), and 3.2V (Blue) at a test current of 20mA. The component is supplied on tape and reel, measuring 3.20mm L x 2.80mm W and a maximum height of 1.85mm. It offers luminous intensity ratings of 180mcd (Red), 1450mcd (Green), and 285mcd (Blue), with a wide 120° viewing angle. The clear, colorless lens has a round with flat top style. This component is suitable for various applications including industrial control, consumer electronics, and automotive lighting.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 180mcd Red, 1450mcd Green, 285mcd Blue |
| Configuration | Common Anode |
| Voltage - Forward (Vf) (Typ) | 1.9V Red, 3.3V Green, 3.2V Blue |
| Lens Color | Colorless |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Height (Max) | 1.85mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 631nm Red, 525nm Green, 470nm Blue |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
