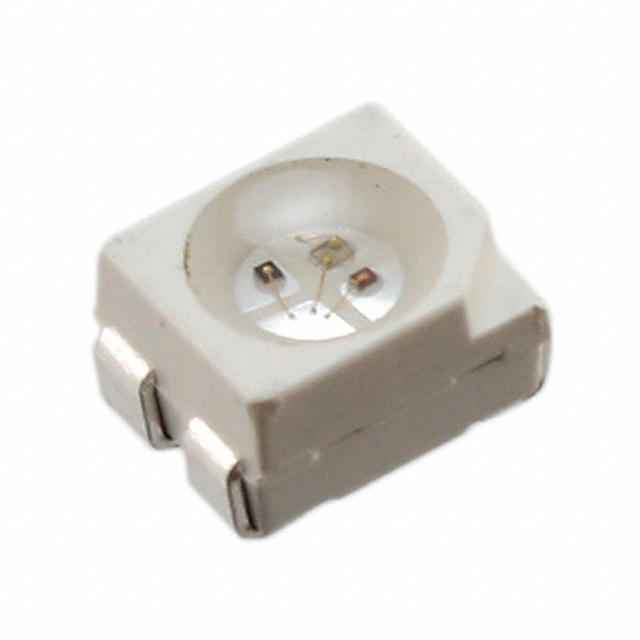

SMP4-SBC-YG
LED GRN/YLW CLEAR 4PLCC SMDManufacturer: Bivar Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More
Bivar Inc. SMP4-SBC-YG offers dual-color LED indication with independent Green and Yellow emitters in a 4-PLCC surface-mount package. This discrete component features a clear, colorless lens with a round, flat-top style, measuring 3.20mm L x 2.80mm W x 1.95mm H. The Green LED emits at a dominant wavelength of 574nm with a typical forward voltage of 1.9V and a luminous intensity of 115mcd at 20mA. The Yellow LED operates at 591nm dominant wavelength, also with a 1.9V forward voltage and a luminous intensity of 180mcd at 20mA. The viewing angle for both emitters is 120°. This component is commonly utilized in industrial control, consumer electronics, and automotive applications requiring compact visual status indication. Supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | Green, Yellow |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 115mcd Green, 180mcd Yellow |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 1.9V Green, 1.9V Yellow |
| Lens Color | Colorless |
| Current - Test | 20mA Green, 20mA Yellow |
| Viewing Angle | 120° |
| Height (Max) | 1.95mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 574nm Green, 591nm Yellow |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
