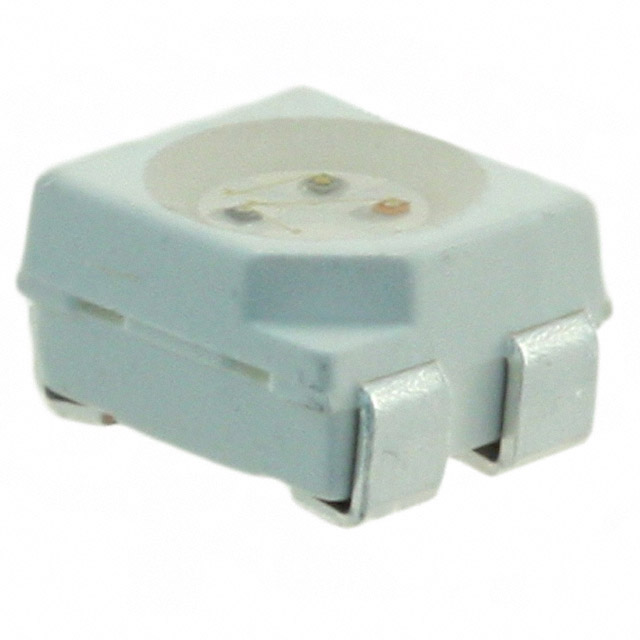

SMP4-RGB
LED RGB CLEAR 4PLCC SMDManufacturer: Bivar Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More
Bivar Inc. SMP4-RGB is a 4-PLCC surface mount LED with Red, Green, and Blue (RGB) emitters. This component features a common anode configuration and delivers distinct wavelengths of 640nm (Red), 570nm (Green), and 466nm (Blue). Forward voltage specifications are 1.85V for Red, 1.9V for Green, and 3.3V for Blue, with a typical test current of 20mA for each color. Luminous intensity ratings are 36mcd (Red), 40mcd (Green), and 50mcd (Blue). The clear, colorless lens measures 2.40mm in diameter with a round, flat-top style, providing a wide 120° viewing angle. The overall dimensions of the component are 3.20mm length by 2.80mm width, with a maximum height of 1.85mm. This device is supplied on tape and reel (TR). Applications include industrial automation, consumer electronics, and signaling indicators.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 36mcd Red, 40mcd Green, 50mcd Blue |
| Configuration | Common Anode |
| Voltage - Forward (Vf) (Typ) | 1.85V Red, 1.9V Green, 3.3V Blue |
| Lens Color | Colorless |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Height (Max) | 1.85mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 640nm Red, 570nm Green, 466nm Blue |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
